- Pressure:High
- Place of Origin:Shanghai, China
- Model Number:M4/M6/M9/MD/ME
- Material:Aluminium
- Brand Name:BEYIWOD/OEM
- Use:medical oxygen cylinder
- Volume:0.78L/1L/1.68L/2.75L/4.55L/10L medical oxygen cylinder
- Water Capacity:0.78L/1L/1.68L/2.75L/4.55L/10L medical oxygen cylinder
- Certification:dot3al medical oxygen cylinder
- Outer Diameter:81mm/91mm/111mm/184mm medical oxygen cylinder
- Working Pressure:139bar/153bar/207bar medical oxygen cylinder
- Test Pressure:232bar/350bar medical oxygen cylinder
- Weight:0.8kg-9.6kg medical oxygen cylinder
- Height:230mm-581mm
- Color:green/sliver as customer required
- Name:DOT3AL medical oxygen cylinder
| Aluminum medical oxygen cylinder overview | |||
| Volume(L) | 4.55L(ME) | Material | AA6061 |
| Outer Dia(mm) | 111mm | Height without valve | 650mm |
| Working pressure | 2015psi | Weight without vale | 3.6kg |
| Test pressure | 3360psi | Standard | DOT3AL |
DOT3AL U.S.A Standard Seamless ALUMINUM Cylinder
Model No. | Outer Dia. (mm) | Volume (L) | Working pressure (bar/psi) | Test pressure (bar/psi) | Length without valve (mm) | Weight without valve (kg) |
7oz/M2 | 51 | 0.3 | 124bar/1800psi | 207bar/3000psi | 238 | 0.37 |
9oz | 54 | 0.38 | 124bar/1800psi | 207bar/3000psi | 245 | 0.38 |
12oz | 64 | 0.51 | 124bar/1800psi | 207bar/3000psi | 245 | 0.49 |
16oz/M4 | 81 | 0.68 | 124bar/1800psi | 207bar/3000psi | 205 | 0.72 |
20oz | 81 | 0.85 | 124bar/1800psi | 207bar/3000psi | 245 | 0.80 |
M4 | 91 | 0.787 | 207bar/3000psi | 350bar/5000psi | 230 | 1.25 |
M6 | 81 | 1 | 153bar/2216psi | 255bar/3695psi | 295 | 1.1 |
ML6 | 111 | 1.08 | 139bar/2015psi | 232bar/3360psi | 195 | 1.34 |
M9/MC/2.5lbs(co2) | 111 | 1.68 | 139bar/2015psi | 232bar/3360psi | 280 | 1.75 |
MD | 111 | 2.75 | 139bar/2015psi | 232bar/3360psi | 423 | 2.45 |
M22 | 133 | 3.9 | 139bar/2015psi | 232bar/3360psi | 420 | 3.3 |
5lbs(co2) | 133 | 3.35 | 124bar/1800psi | 207bar/3000psi | 369 | 3 |
ME | 111 | 4.55 | 139bar/2015psi | 232bar/3360psi | 650 | 3.6 |
10lbs(co2) | 175 | 6.7 | 124bar/1800psi | 207bar/3000psi | 430 | 6 |
M60/15lbs(co2) | 184 | 10 | 153bar/2216psi | 255bar/3695psi | 581 | 9.6 |
20lbs(co2) | 203 | 13.4 | 124bar/1800psi | 207bar/3000psi | 600 | 10.8 |
M90 | 184 | 15.2 | 153bar/2216psi | 255bar/3695psi | 830 | 13.7 |
M122/MM | 203 | 21 | 153bar/2216psi | 255bar/3695psi | 907 | 20 |
Some our customer's aluminum oxygen cylinder picture show.

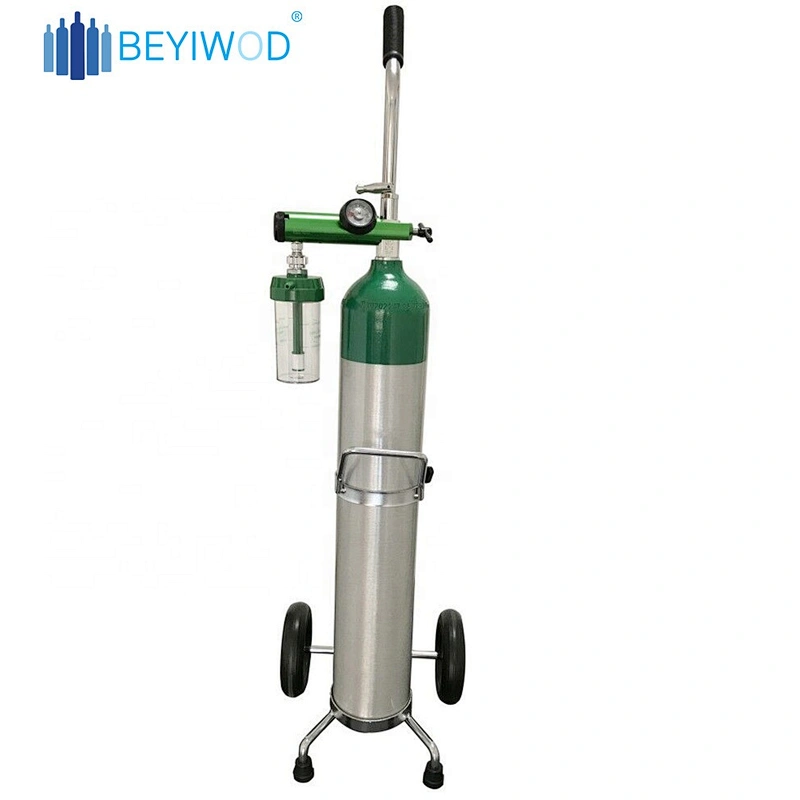

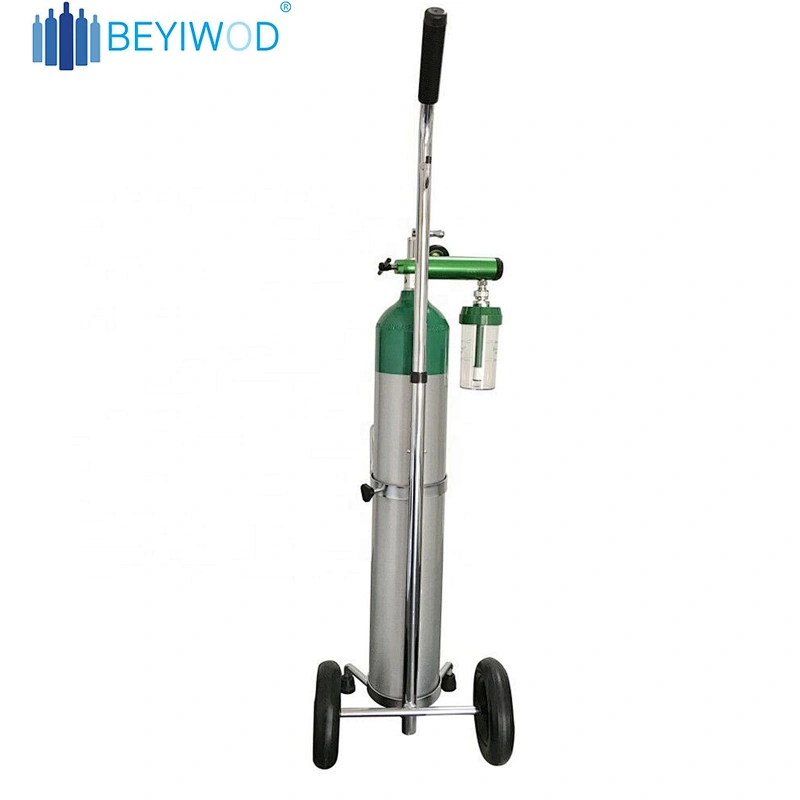

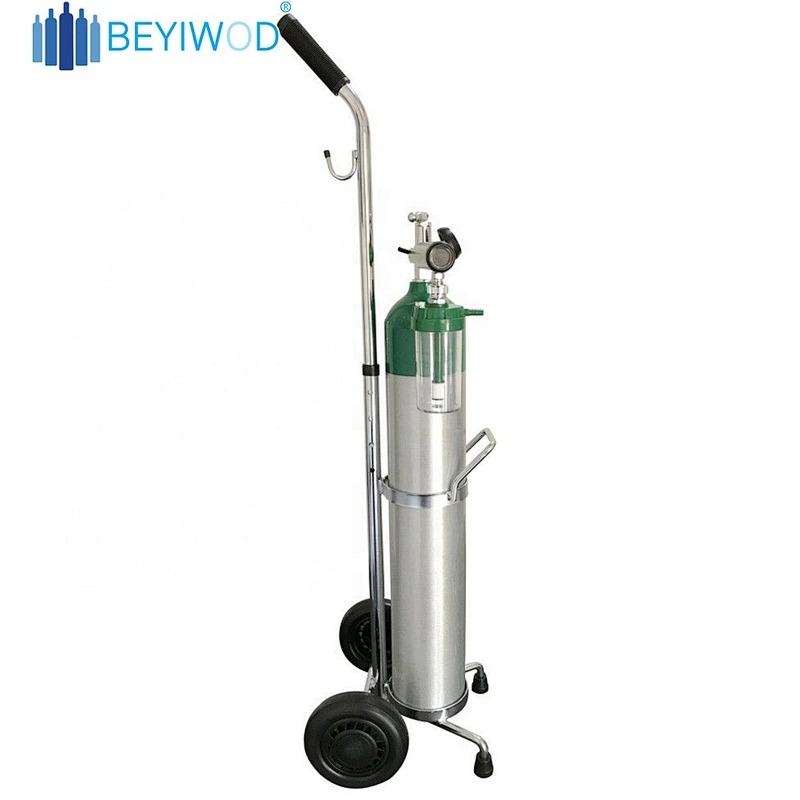

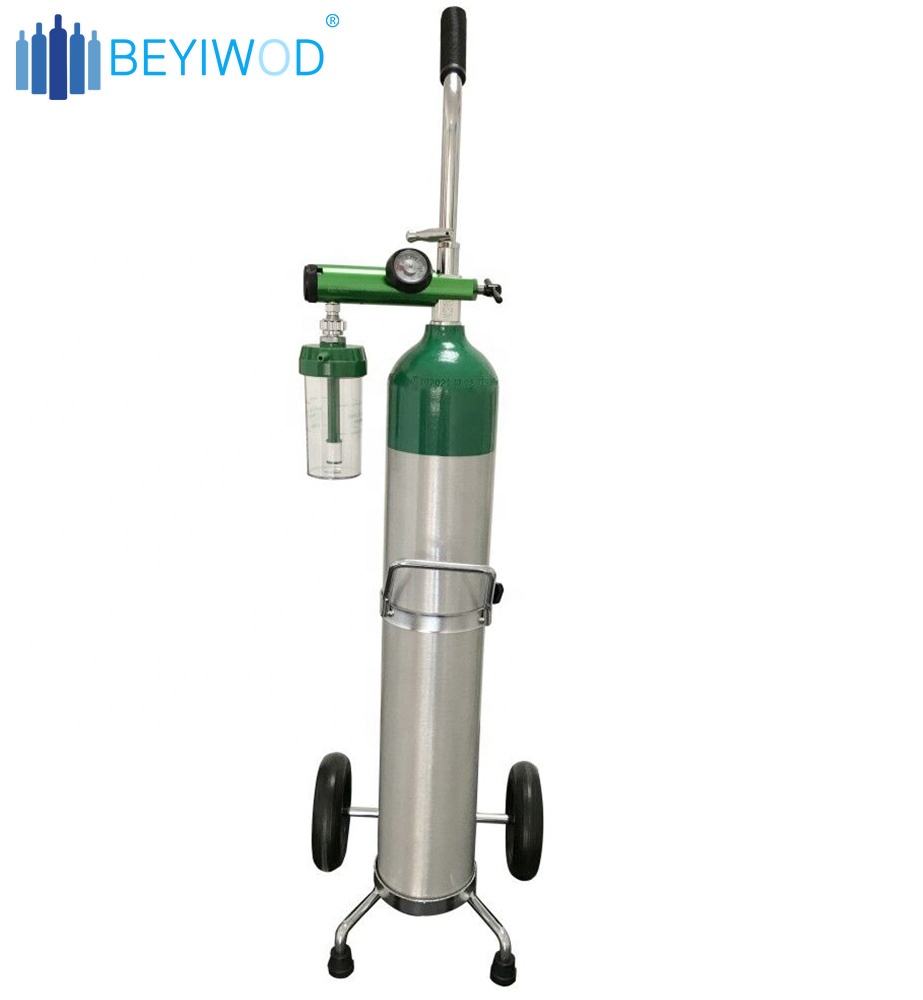

Oxygen cylinder with CGA870 valve and pin index regulator & trolley.medical oxygen cylinder

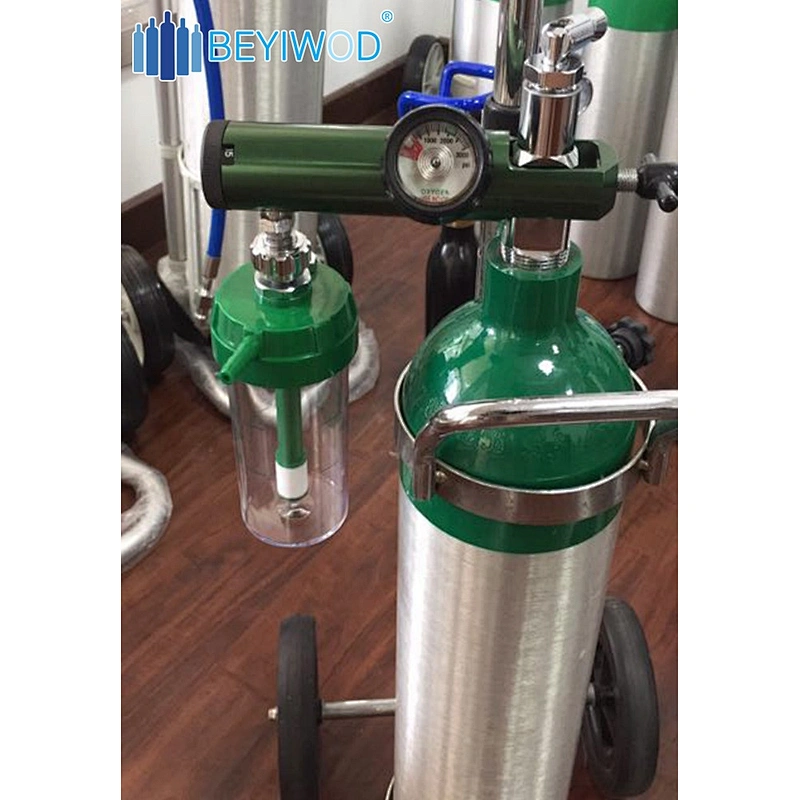

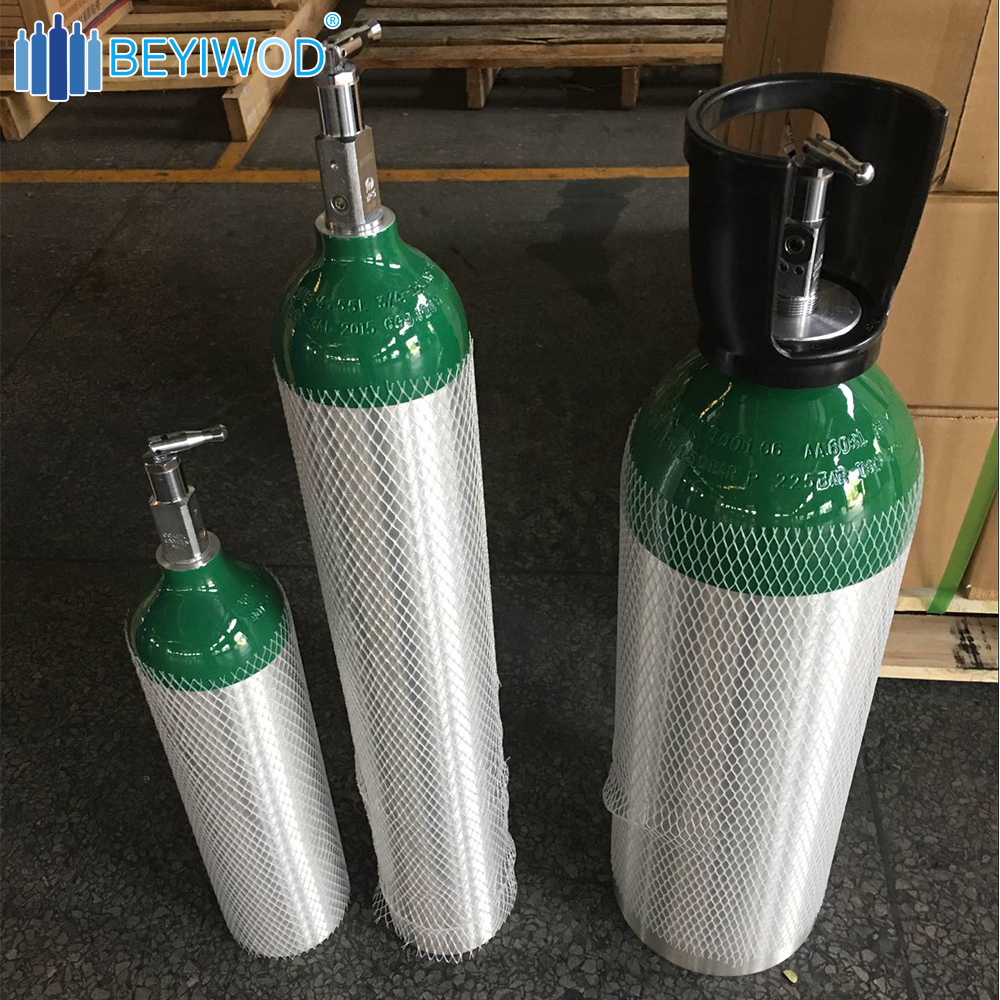

DOT3AL standard Oxygen cylinder with pin index valve.medical oxygen cylinder

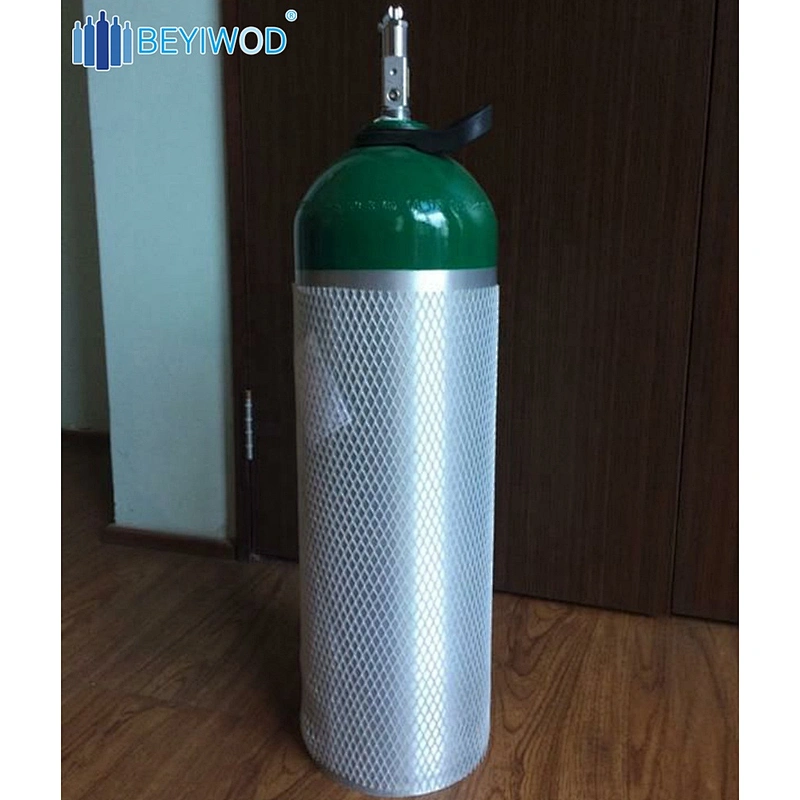

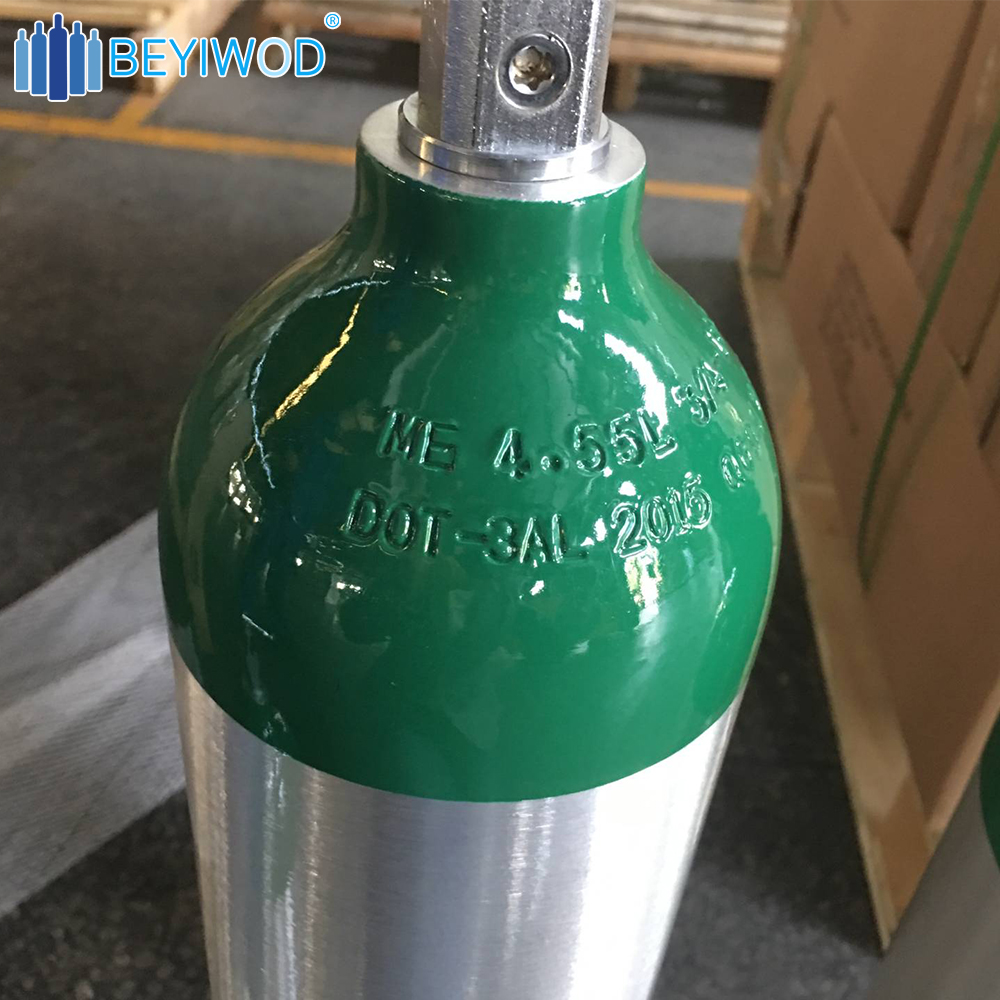

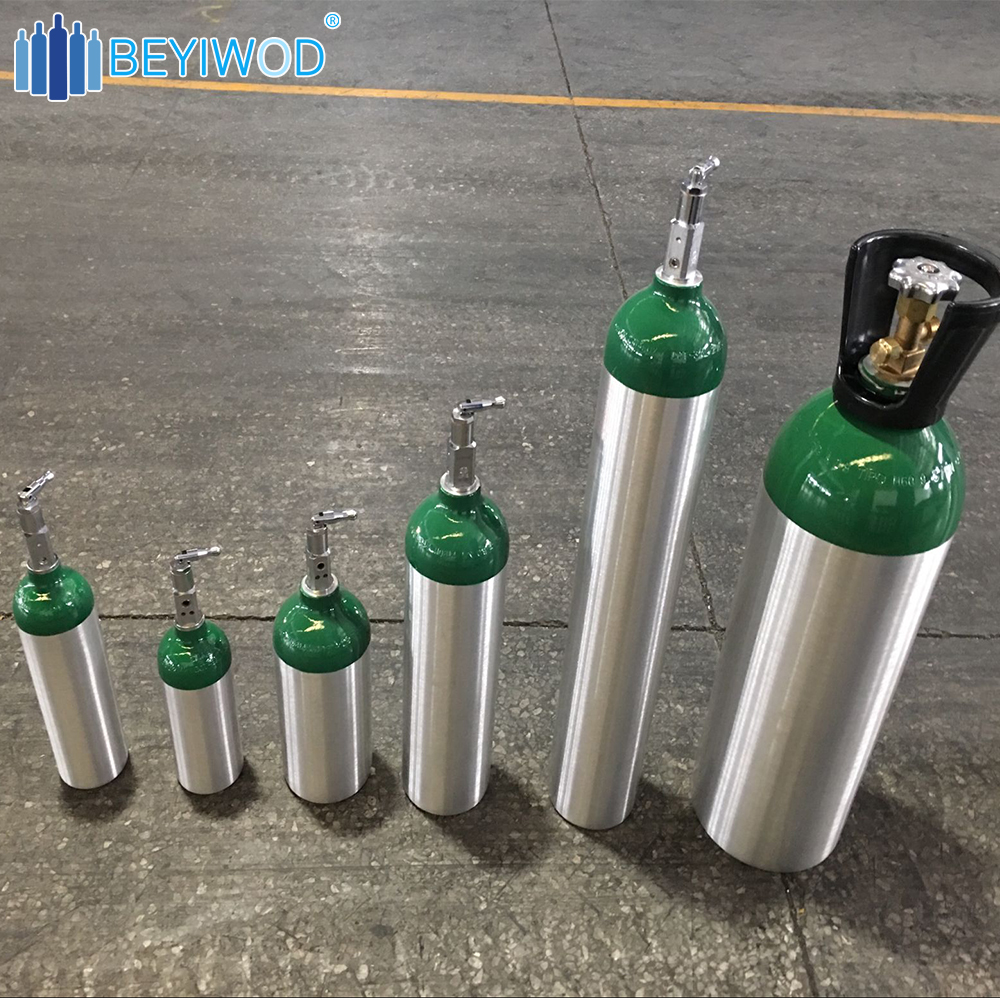

Oxygen cylinder with green color shoulder.medical oxygen cylinder

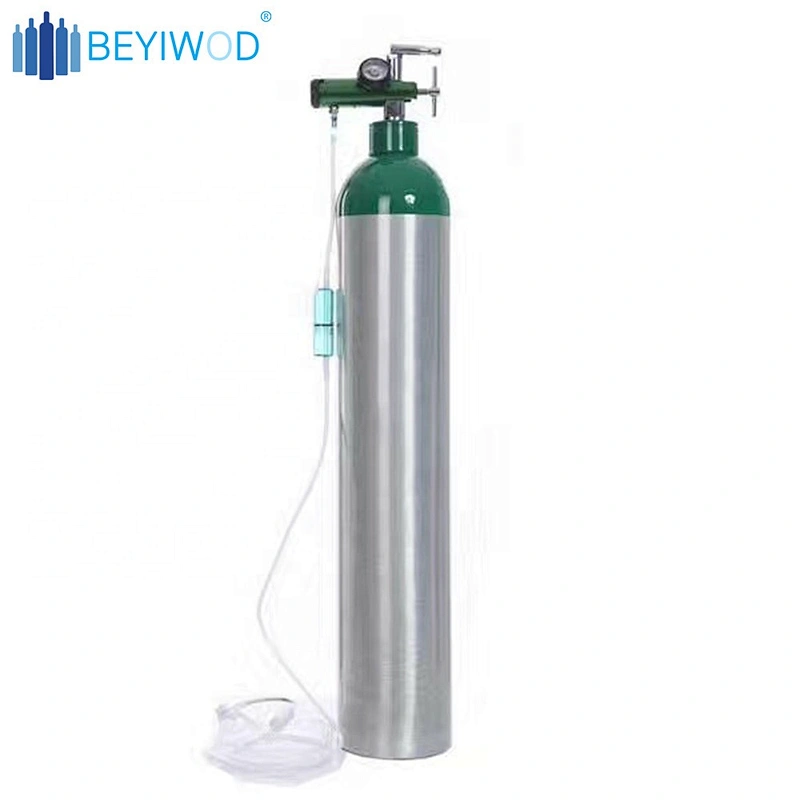

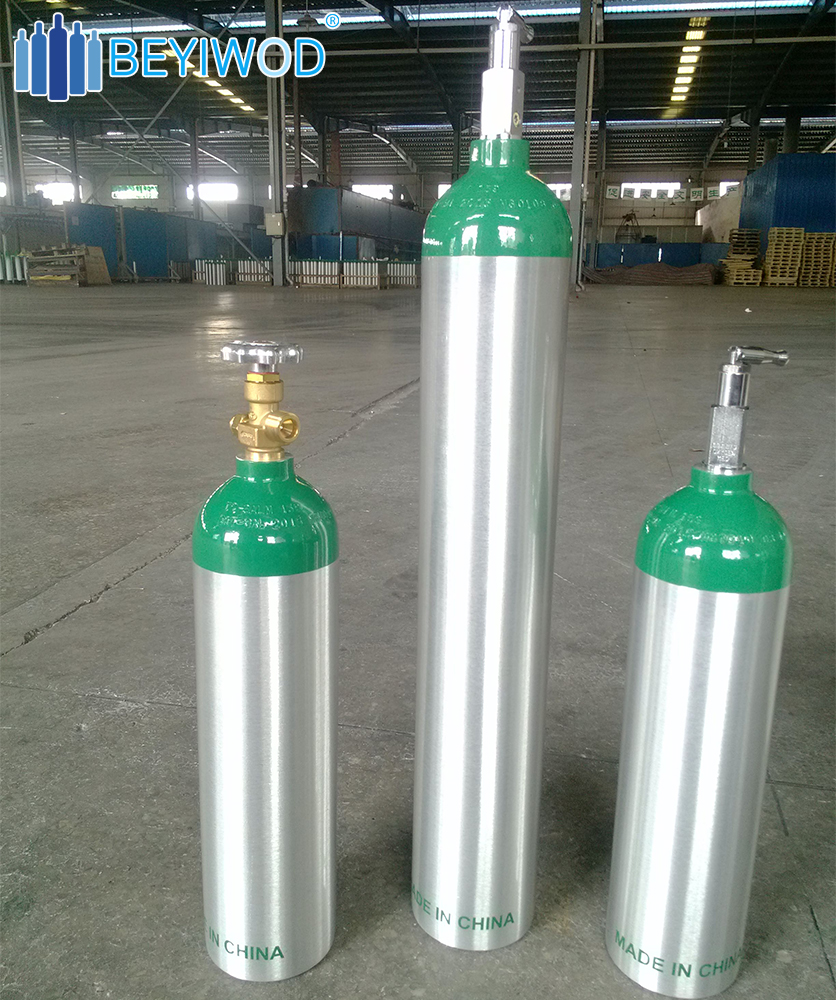

O2 medical oxygen cylinder.medical oxygen cylinder

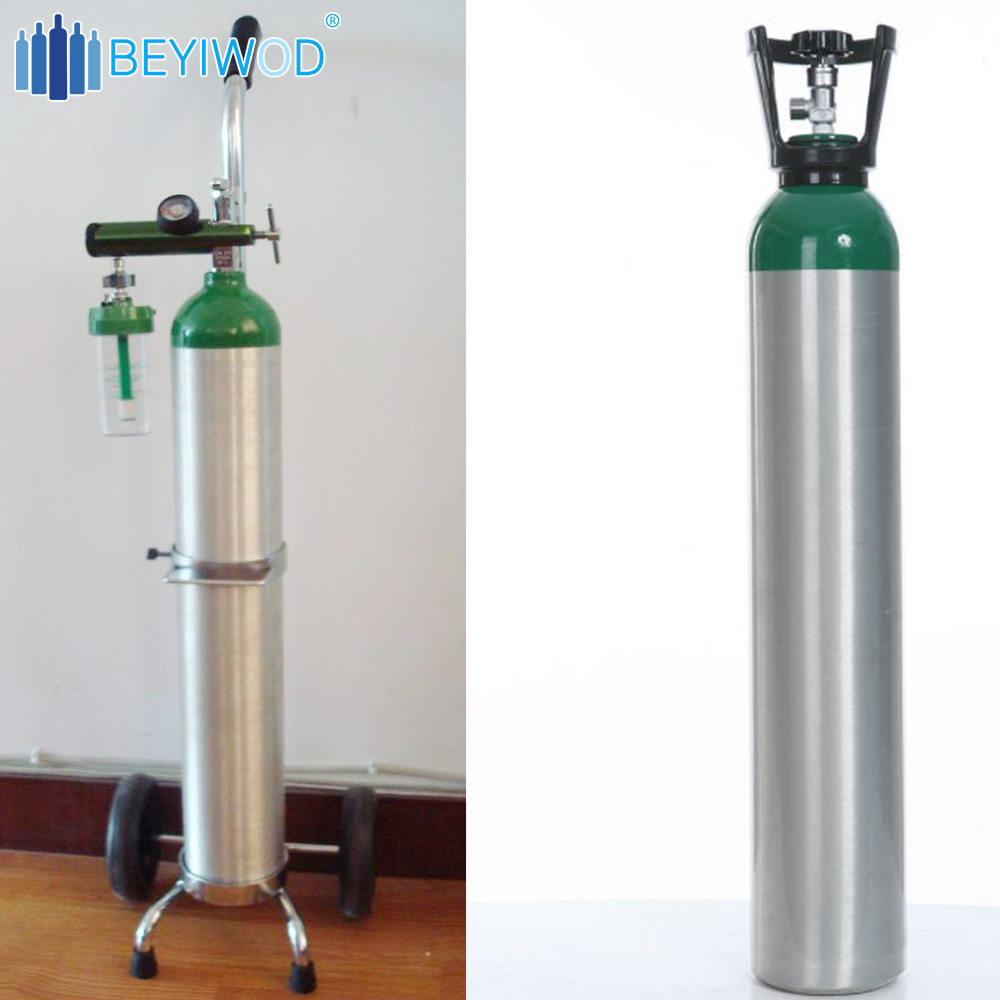

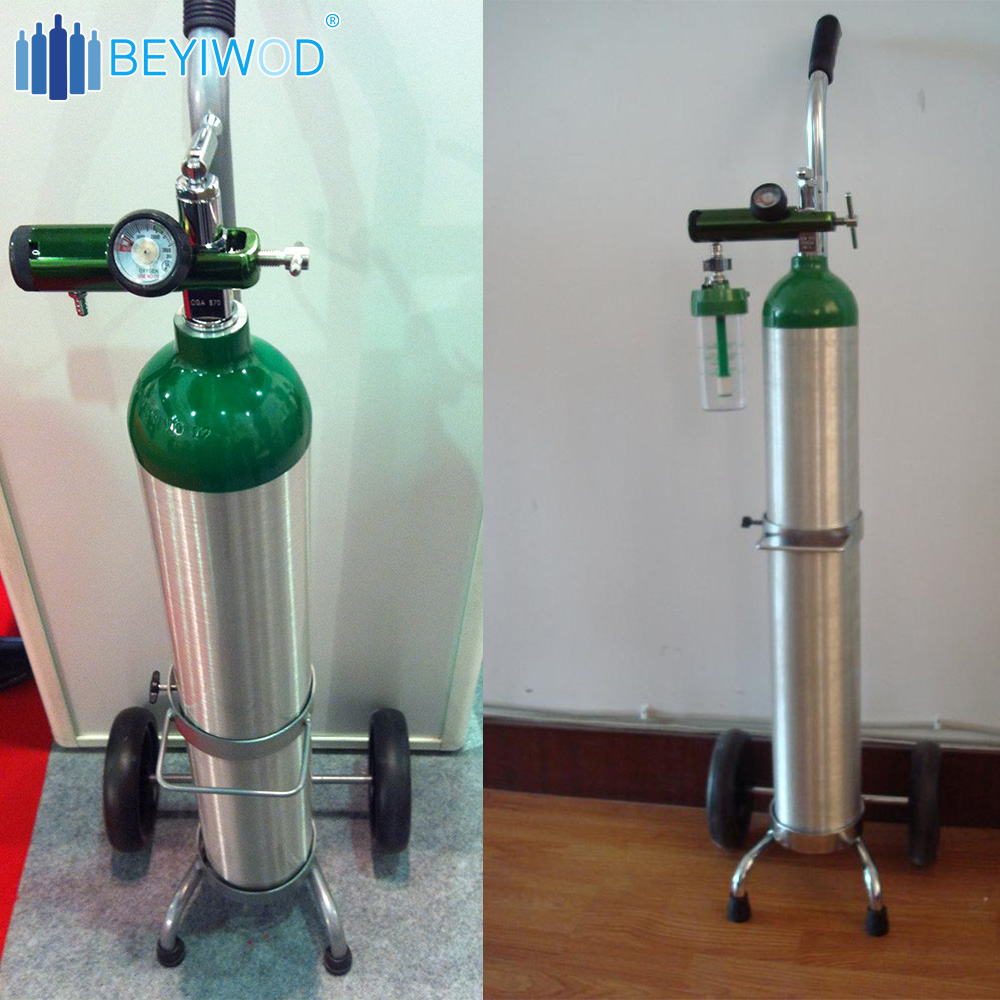

ME oxygen cylinder with pin index oxygen regulator and trolley.medical oxygen cylinder
