- Place of Origin:Shanghai, China
- Brand Name:BEYIWOD
- Type:Paintball Gun Barrel
- Material:Aluminium
- Thread:M18*1.5
- Packing:20sets/carton
- MOQ:500 Pieces
- Working Pressure:207 Bar
- Outside diameter:91.2mm
- weight:0.8kgs
- Water Capacity:0.4l
- height:150mm
- Features:Durable

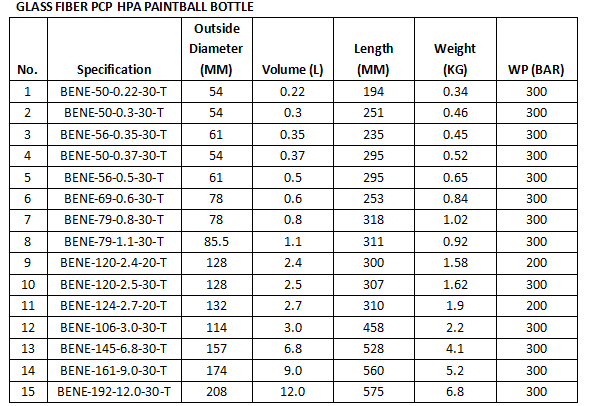

Paintball bottle specification
Noted, cando OEM, more specification,please leave us message
CO2 SYSTEM
name | working pressure (psi / bar) | external diameter(in / mm) | height(in / mm) | weight(lbs / kgs) | water volume(cu in / cc) | Cylinder thread |
9oz | 1800 / 124 | 2.126 / 54 | 9.37 / 238 | 0.73 / 0.33 | 23.15 / 380 | 5/8-18UNF M18*1.5 |
12oz | 1800 / 124 | 2.50 / 63,8 | 9.37 / 238 | 1.1 / 0.5 | 31 / 508 | |
16oz | 1800 / 124 | 3.189 / 81 | 7.87 / 200 | 1.37 / 0.62 | 40 / 657 | |
20oz | 1800 / 124 | 3.189 / 81 | 9.37 / 238 | 1.63 / 0.74 | 48.8 / 800 | |
24oz | 1800 / 124 | 3.189 / 81 | 11.02 / 280 | 1.89 /0.86 | 57.6 / 943 |
AIR SYSTEM
name | working pressure | external diameter(in / mm) | height(in / mm) | weight(lbs / kgs) | water volume(cu in / cc) | thread gage(in / mm) |
13ci | 3000 / 207 | 1.97 / 50 | 7.09 / 180 | 0.7 /0.32 | 13/ 197 | 5/8-18UNF M18*1.5 |
26ci | 3.59 / 91.2 | 5.90 / 150 | 1.76 / 0.8 | 26 / 390 | ||
48ci | 3.59 / 91.2 | 8.54 / 215 | 2.56 / 1.15 | 48 / 787 | ||
62ci | 3.59 / 91.2 | 10.4 / 265 | 2.97 / 1.4 | 62 /990 |

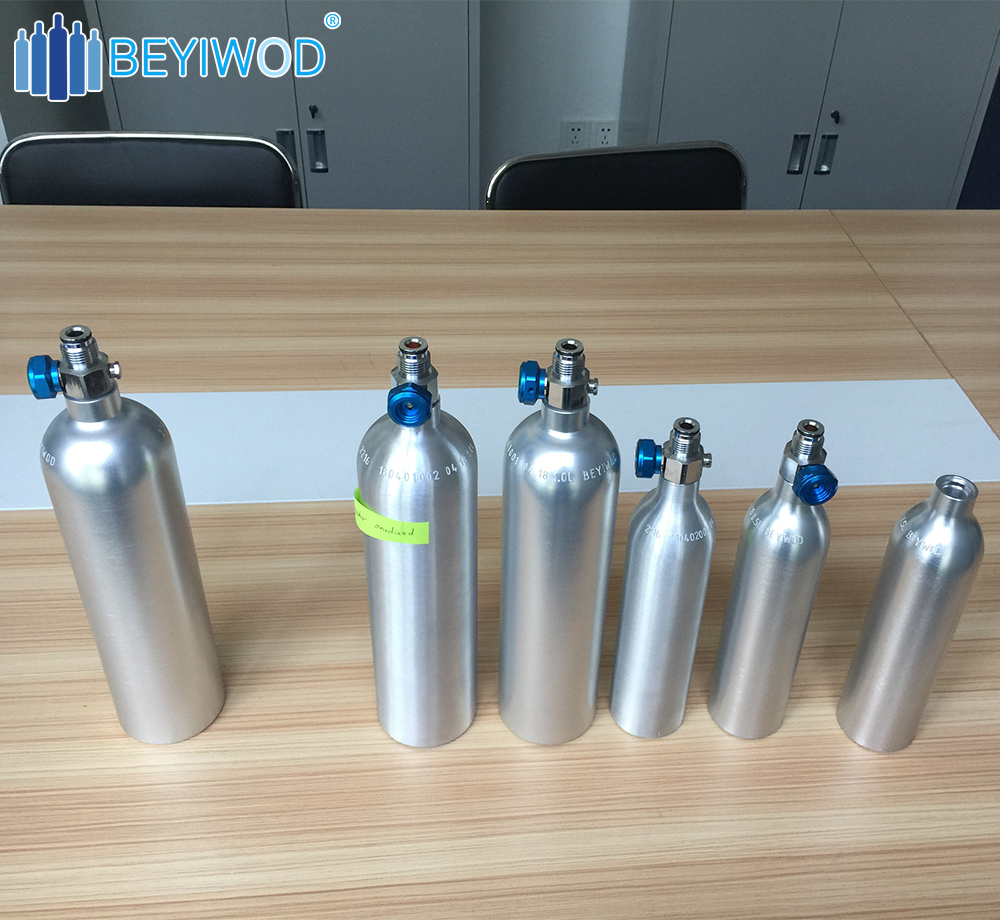

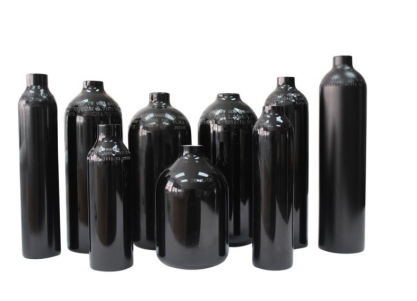

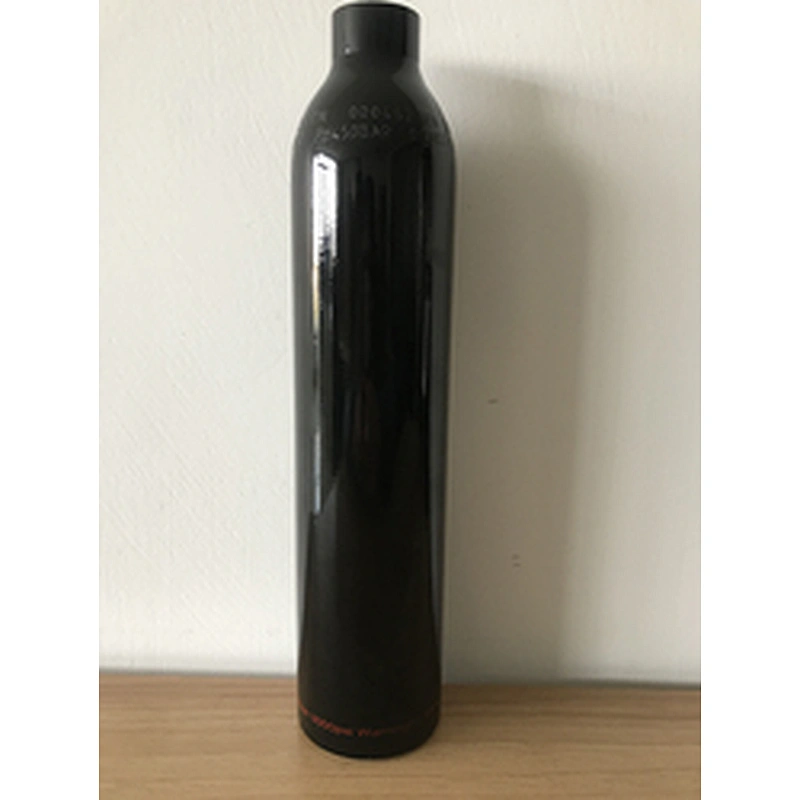

Picture of real products: different size of paintball bottle
Paintball bottle packaging

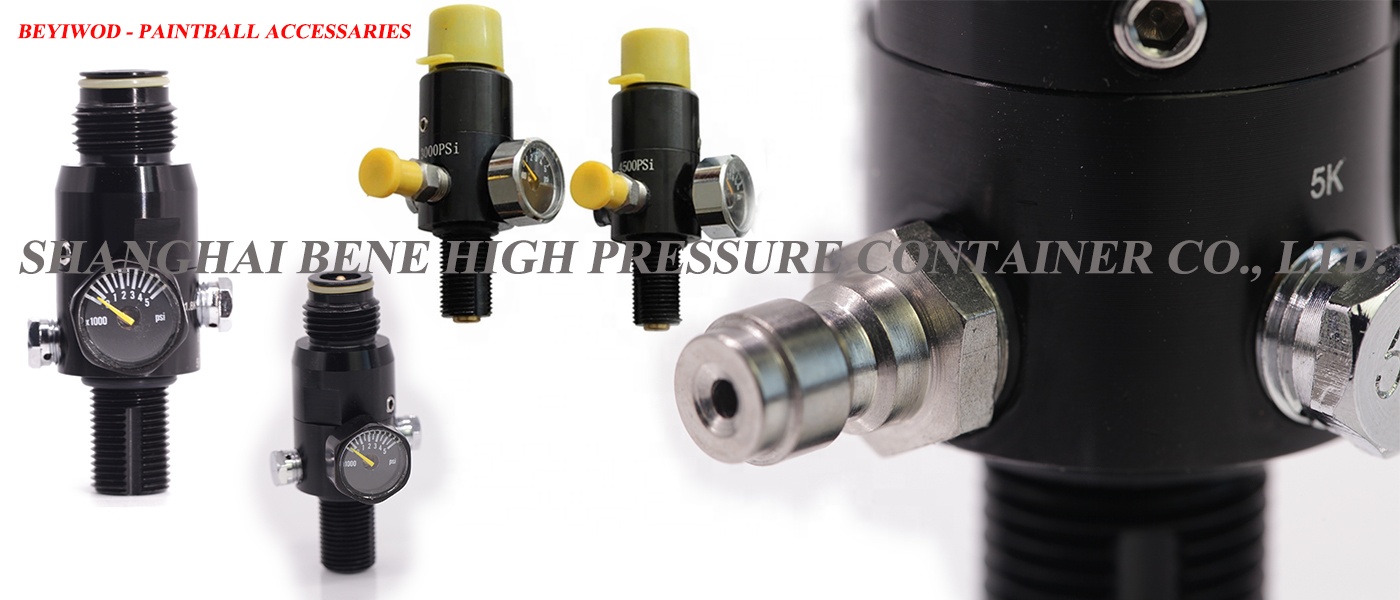

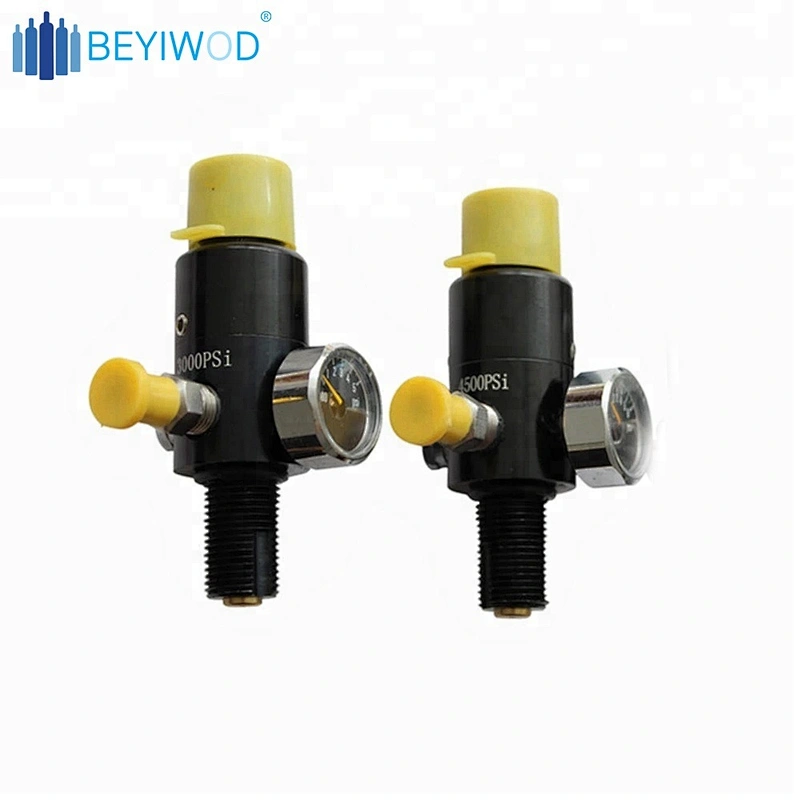

Paintball bottle valve
