- Pressure:High
- Place of Origin:Shanghai, China
- Model Number:BENE-6.7L-200bar
- Material:Steel
- Brand Name:BEYIWOD
- Use:MEDICAL /INDUSTRIAL
- Water Capacity:6.7L
- Working Pressure:200BAR
- Test Pressure:300BAR
- Outside Diameter:137MM/140MM/152MM
- weight without valve:8.1kg
- height without valve:700mm
- Certification:TUV approved
- Color:bule/grey/green
- gas medium:oxygen /co2 /argon/nitrogen/helium
- material:37Mn/34CrMo4
For the Eu market, we have some size steel gas cylinder can provide.
TUV approved cylinder with"pi"mark.
| Current No. | Product description | Until now applied Codes | Materials | Limitations/Restrictions |
| Refillable transportable seamless steel gas cylinder for compressed and liquied gas | TPED 2010/35/EC | GB18248-20008 | ||
| 01 | Ø108mm | ADR/RID EN 1964-1:1999&EN ISO9809-1:2010 | 34CrMo4 | Volum:2.16-5.53L Test pressure:250bar |
| 02 | Ø137mm | ADR/RID 2011 EN 1964-1:1999&EN ISO9809-1:2010 | 34CrMo4 | Volum:4.0-10.5L Test pressure:315bar |
| 03 | Ø140mm | ADR/RID EN 1964-1:1999&EN ISO9809-1:2010 | 34CrMo4 | Volum:4.56-9.96L Test pressure:320bar |
| 04 | Ø152mm | ADR/RID 2013 EN ISO9809-1:2010 | 34CrMo4 | Volum:5.5-15L Test pressure:300bar |
| 05 | Ø165mm | ADR/RID 2013 EN ISO9809-3:2010 | 37Mn | Volume:7.2-20L Test pressure:250bar |
Of course , what we can produce cylinder size and test pressure not only above chart ,our steel gas cylinder that get TUV approved size from 2L-80L,and test pressure from 250bar-450bar.we are confident whatever high pressure gas cylinder you need, we all can provide it for you.
If you are interested in our gas cylinder, pls feel free send me an inquiry , we are sure our best service&best product must can help you win your customers.
Contact me get more information about our gas cylinder.
6.7L steel cylinder specification as bellow:
water capacity: 6.7L
outer diameter: 140mm
working pressure: 200bar
test pressure: 300bar
burst pressure: ≥480bar
length of shell: 590mm±15mm
weight of shell: 9.7kg
Cylinder thread: 25E / PZ27.8/ W28.8 /3/4"-14NGT

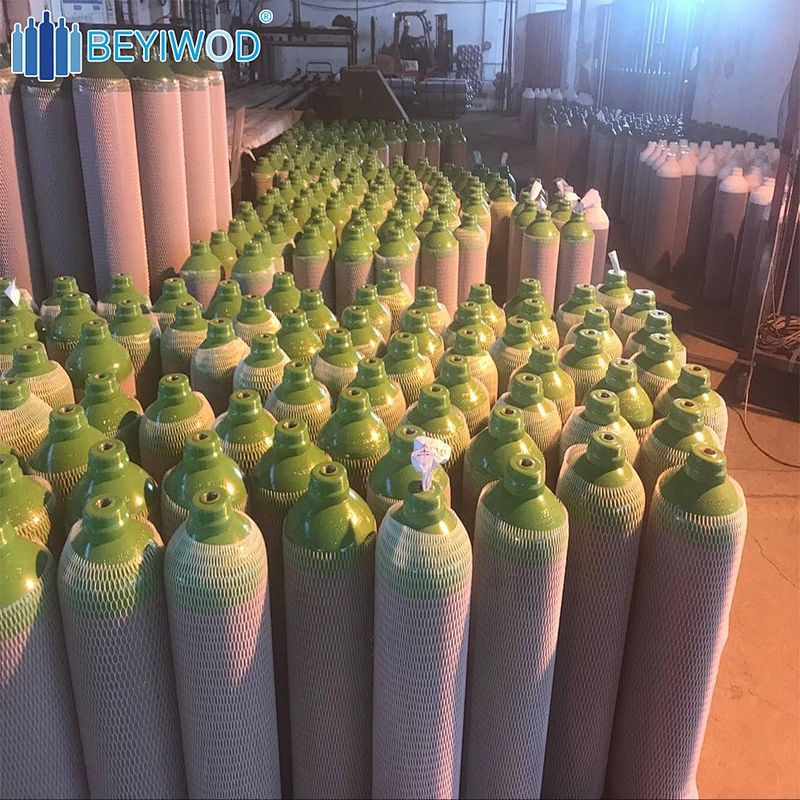

Picture show about the 6.7L steel cylinder for oxygen /co2 /argon gas.

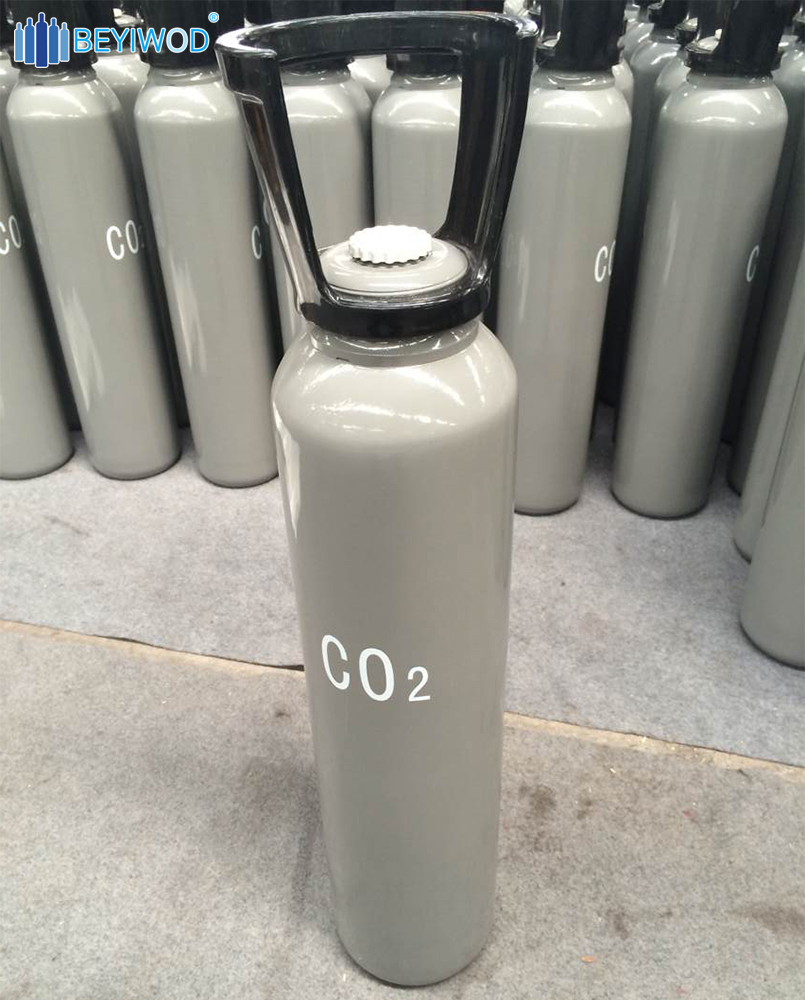

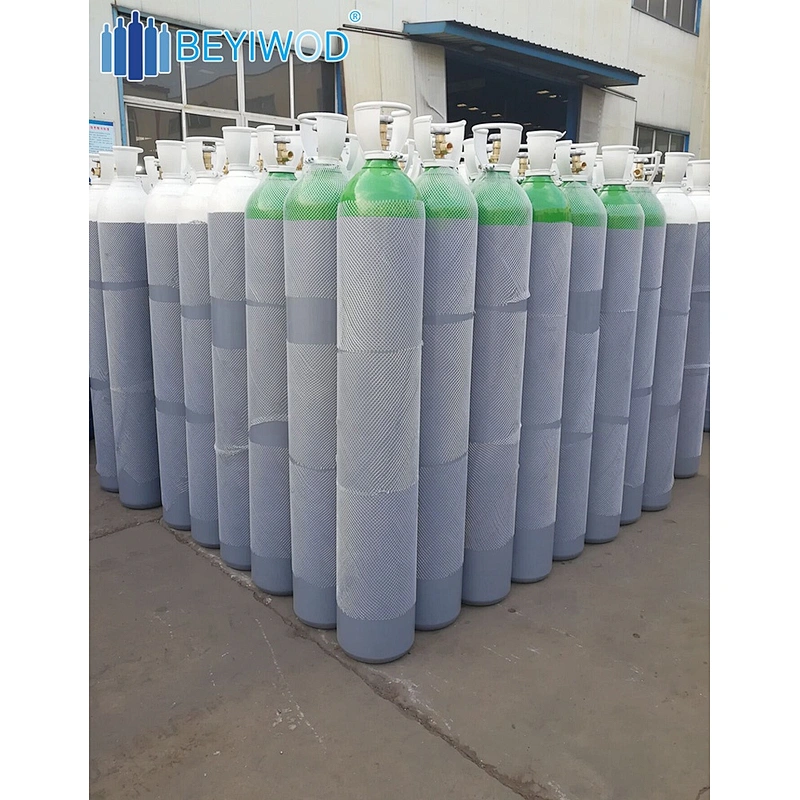

6.7L co2 cylinder with handle for European market.

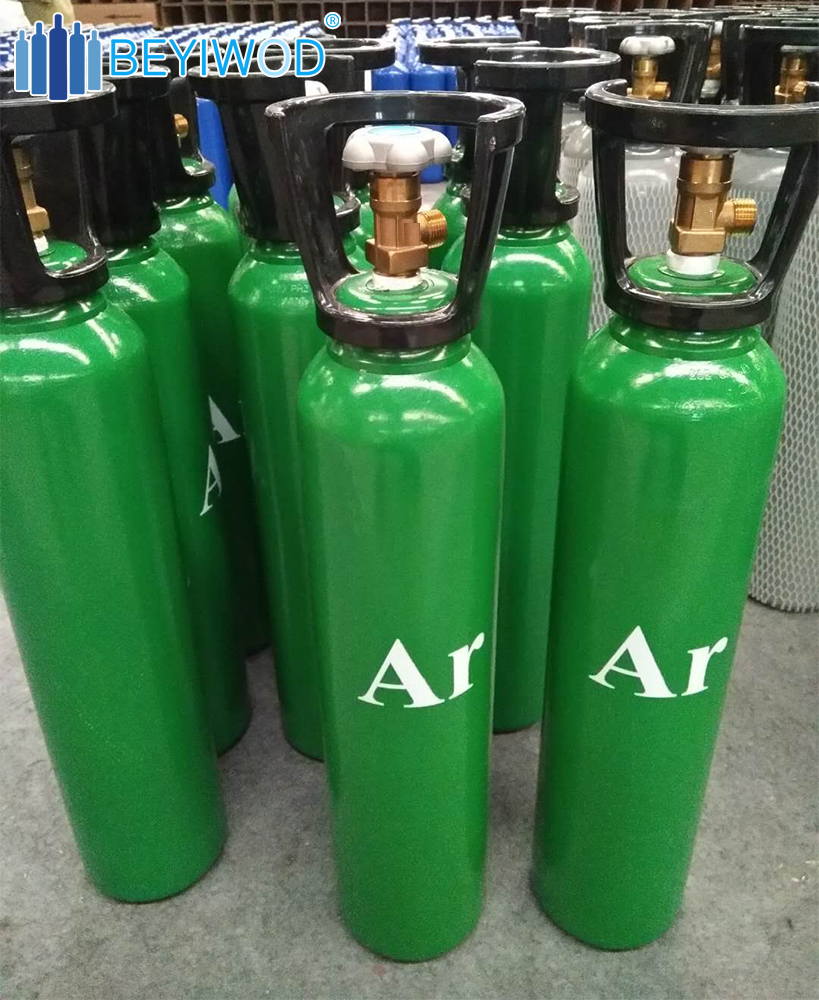

6.7L Argon cylinder.

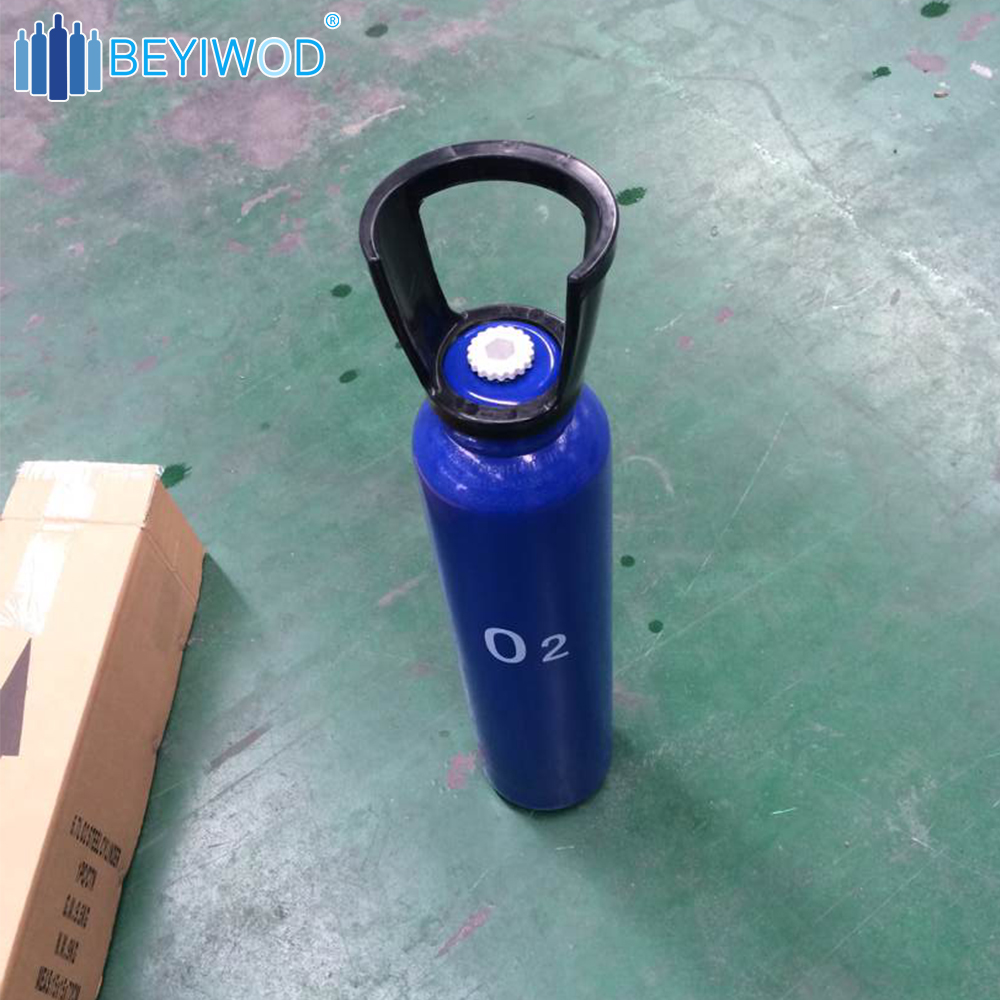

6.7L steel oxygen cylinder with blue color,

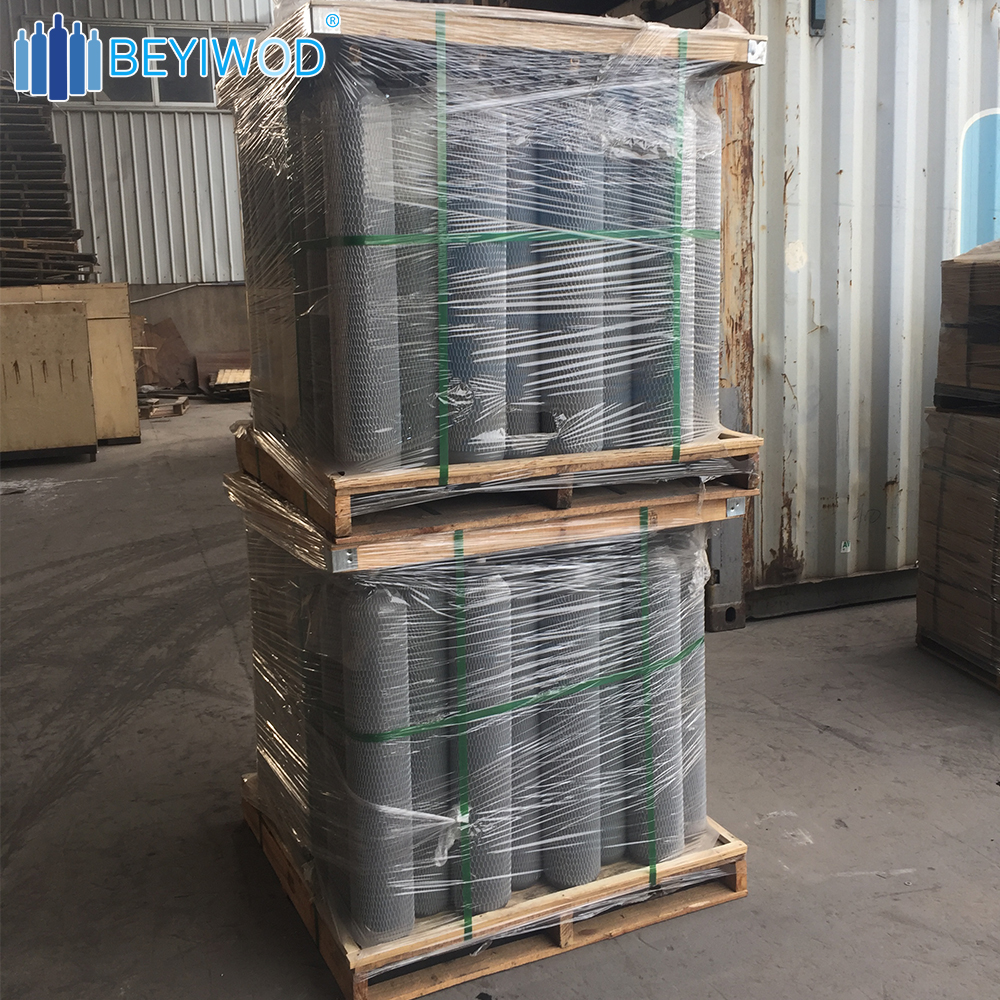

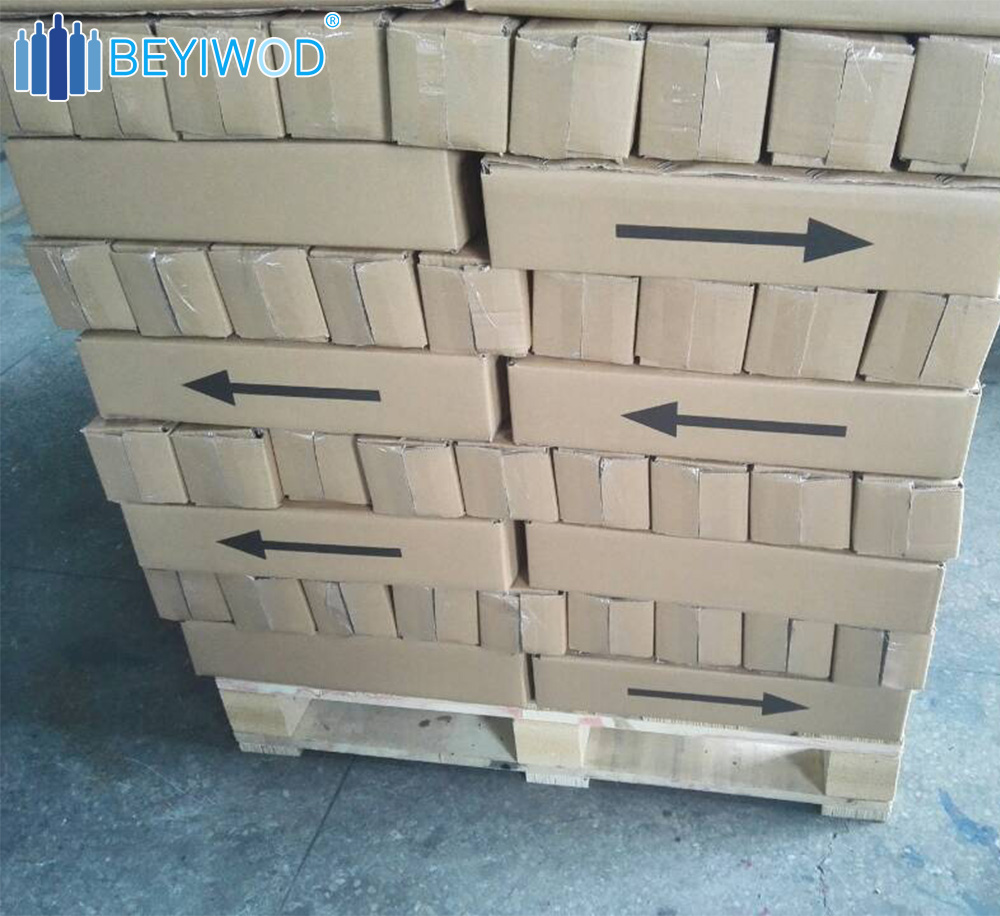

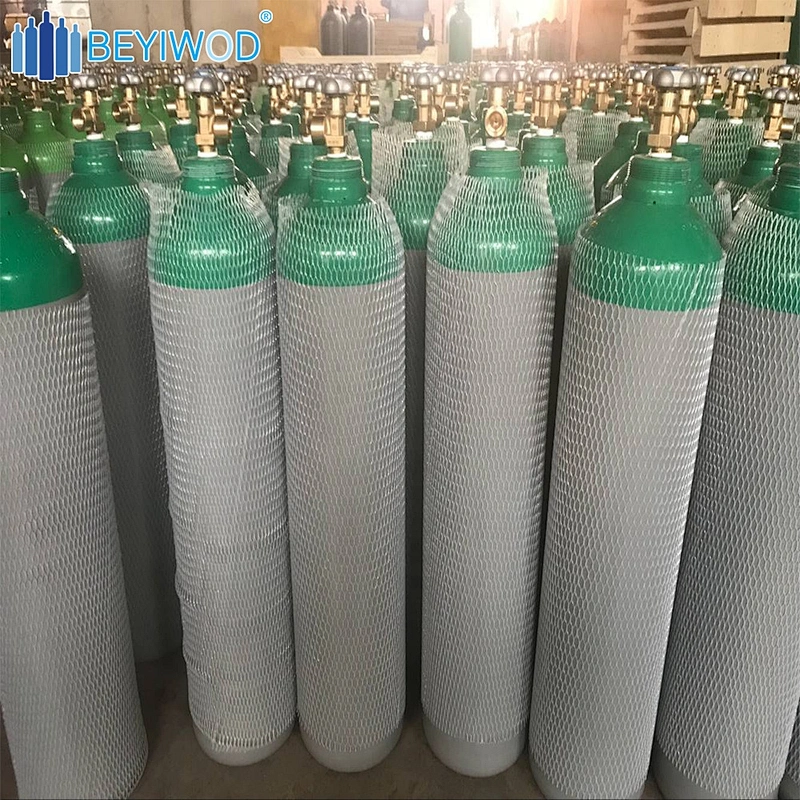

The 6.7L steel cylinder packed with nylon net+carton ,then pack in wooden pallet.

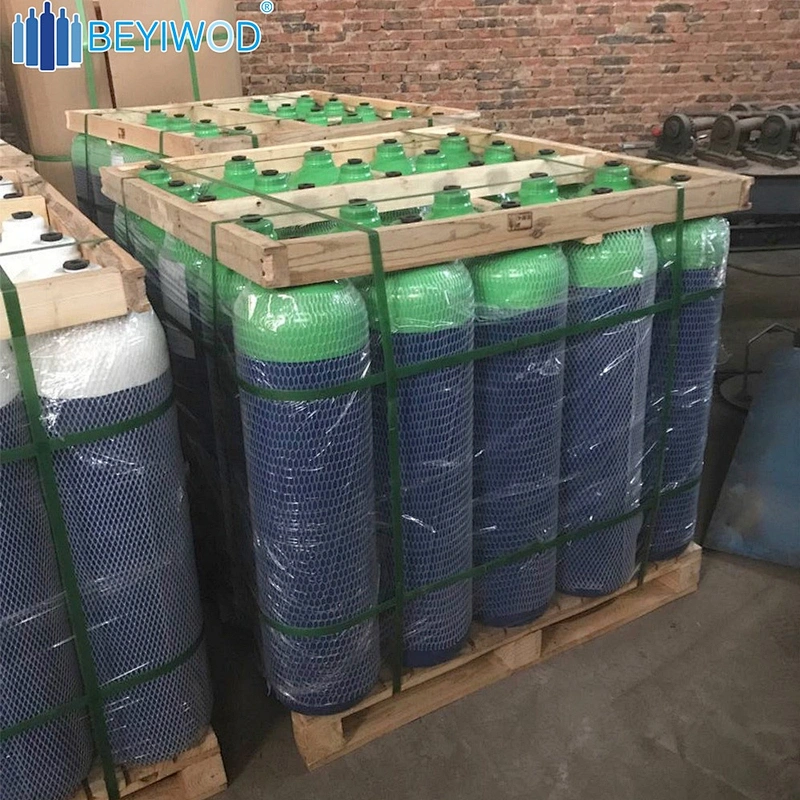

Co2 cylinder packed with wooden pallet.

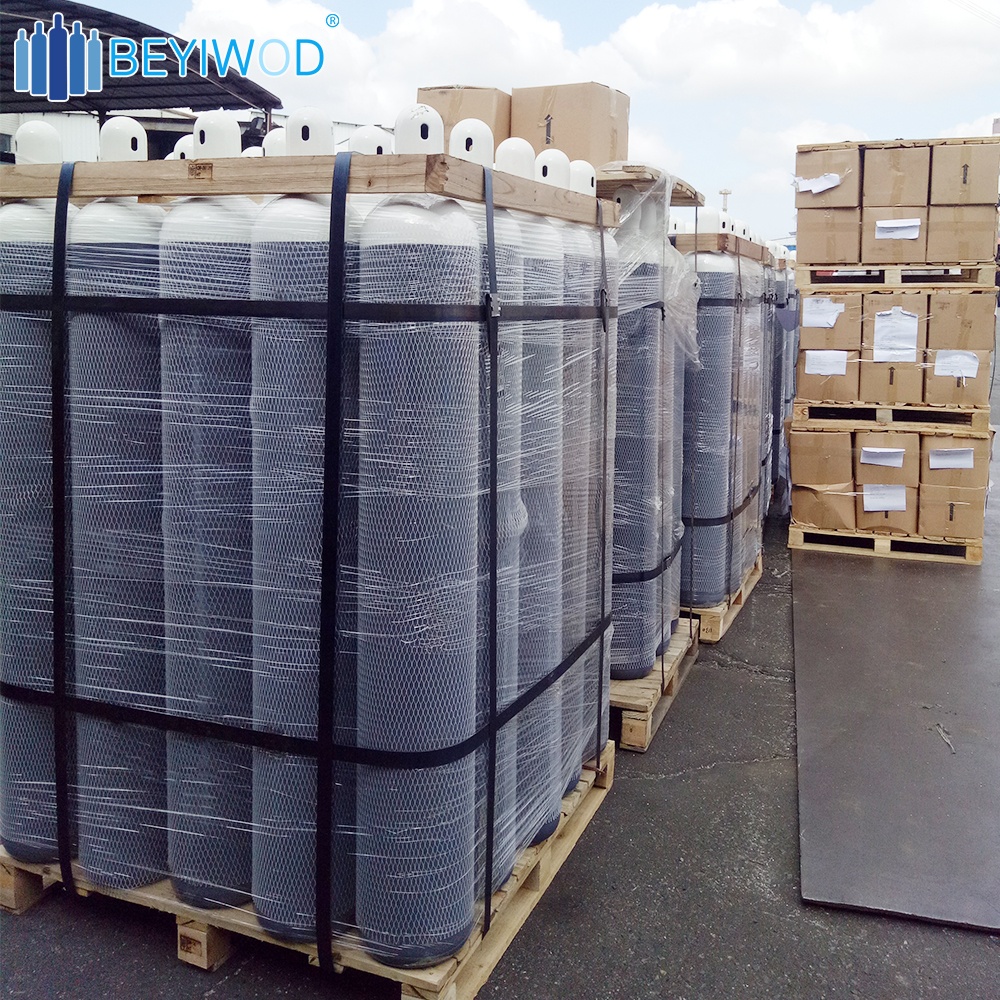

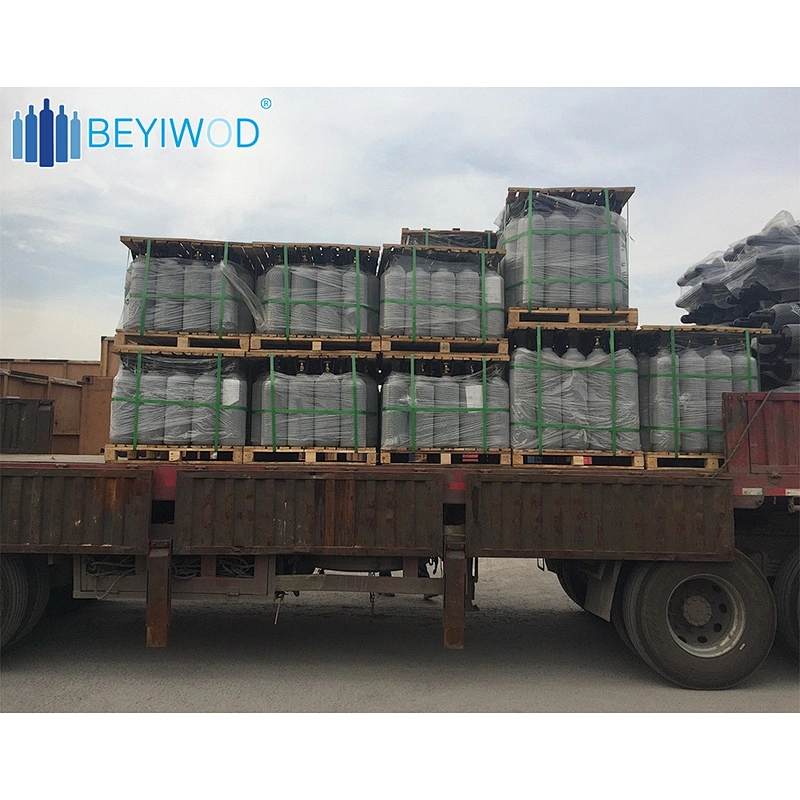

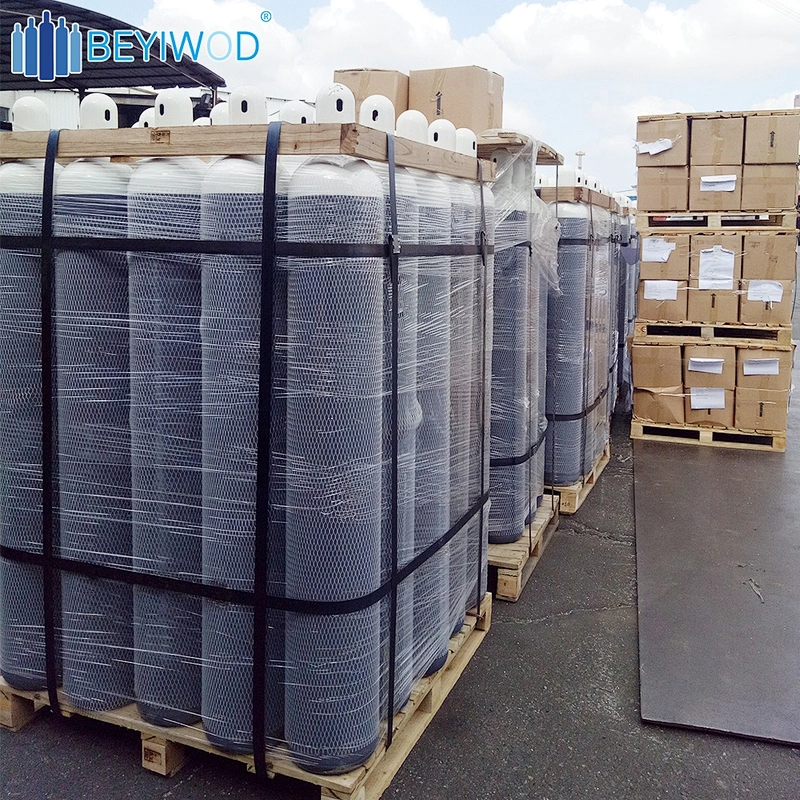

Big size co2 gas cylinder packed in wooden pallet,25pcs/pallet.

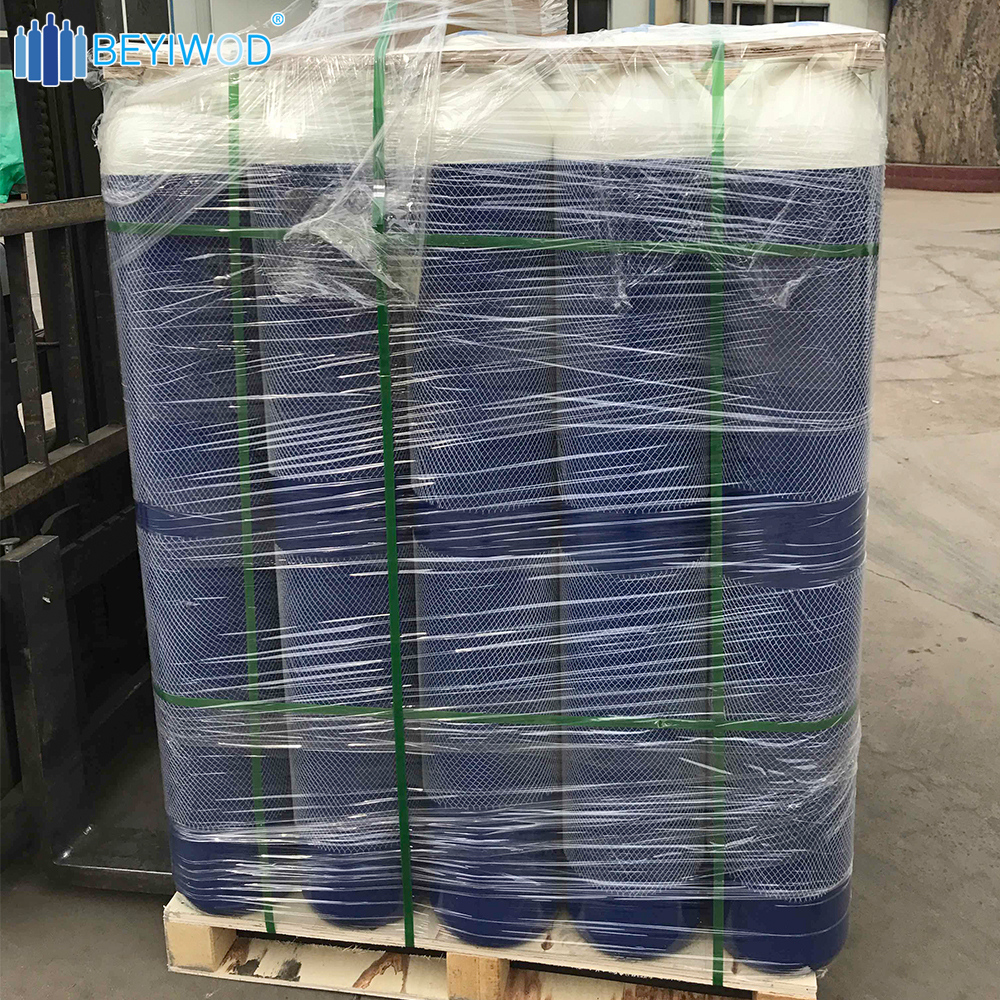

50L 300bar steel gas cylinder .
