- Pressure:High
- Place of Origin:Shanghai, China
- Model Number:ISO7866 aluminum cylinder
- Material:Aluminium
- Brand Name:BEYIWOD/OEM
- Use:aluminum cylinder for nitrous oxide gas cylinder
- Volume:0.5L-20L nitrous oxide
- Water Capacity:0.5L-20L
- Certification:DOT3AL nitrous oxide gas cylinder
- Outer Diameter:75mm-203mm
- Working Pressure:2216psi nitrous oxide gas cylinder
- Test Pressure:3695psi nitrous oxide gas cylinder
- Weight without valve:0.6kg-19.1kg
- Height without valve:245mm-900mm
- Color:Optional nitrous oxide gas cylinder
| 0.5L 1L aluminum medical nitrous oxide gas cylinder | |||
| Volume(L) | 0.5L | Material | AA6061 |
| Outer Dia(mm) | 63.5mm | Weight without valve | 0.53kg |
| Working pressure | 2216psi | Height without valve | 251mm |
| Test pressure | 3695psi | Standard | DOT3AL |
DOT3AL standard aluminum cylinder
Model | serial | design wall thinkness | water capacity | Design hight | Design weight | DOT approved |
BN-63.5-2216-(0.28-0.50)L | 1 | 3.25 | 0.28 | 163 | 0.37 | √ |
2 | 3.25 | 0.3 | 171 | 0.38 | √ | |
3 | 3.25 | 0.35 | 191 | 0.42 | √ | |
4 | 3.25 | 0.39 | 207 | 0.45 | √ | |
5 | 3.25 | 0.45 | 231 | 0.49 | √ | |
6 | 3.25 | 0.5 | 251 | 0.53 | √ | |
BN-81.5-1800-(0.63-1.17)L | 7 | 3.36 | 0.66 | 212 | 0.70 | √ |
8 | 3.36 | 0.7 | 222 | 0.72 | √ | |
9 | 3.36 | 0.8 | 245 | 0.78 | √ | |
10 | 3.36 | 0.9 | 270 | 0.84 | √ | |
11 | 3.36 | 1.0 | 291 | 0.89 | √ | |
12 | 3.36 | 1.1 | 314 | 0.94 | √ | |
13 | 3.36 | 1.17 | 330 | 0.98 | √ | |
BN-81.5-2216-(0.7-1.3L) | 14 | 4.15 | 0.7 | 237 | 0.87 | √ |
15 | 4.15 | 0.8 | 261 | 0.94 | √ | |
16 | 4.15 | 0.9 | 286 | 1.02 | √ | |
17 | 4.15 | 1 | 310 | 1.09 | √ | |
18 | 4.15 | 1.1 | 334 | 1.16 | √ | |
19 | 4.15 | 1.2 | 359 | 1.23 | √ | |
20 | 4.15 | 1.3 | 383 | 1.30 | √ | |
BN-81.5-3000-(0.56-1.04)L | 21 | 5.65 | 0.6 | 222 | 1.03 | √ |
22 | 5.65 | 0.7 | 249 | 1.13 | √ | |
23 | 5.65 | 0.8 | 275 | 1.23 | √ | |
24 | 5.65 | 0.9 | 301 | 1.34 | √ | |
25 | 5.65 | 1.0 | 328 | 1.44 | √ | |
BN-111.3-1800-(0.98-1.82)L | 26 | 4.60 | 1.0 | 193 | 1.23 | √ |
27 | 4.60 | 1.1 | 205 | 1.29 | √ | |
28 | 4.60 | 1.2 | 218 | 1.34 | √ | |
29 | 4.60 | 1.3 | 230 | 1.40 | √ | |
30 | 4.60 | 1.4 | 243 | 1.45 | √ | |
31 | 4.60 | 1.5 | 255 | 1.51 | √ | |
32 | 4.60 | 1.6 | 268 | 1.57 | √ | |
33 | 4.60 | 1.7 | 280 | 1.62 | √ | |
34 | 4.60 | 1.8 | 292 | 1.68 | √ |
If you are interested in our aluminum gas cylinder, pls send me an inquiry to contact me.

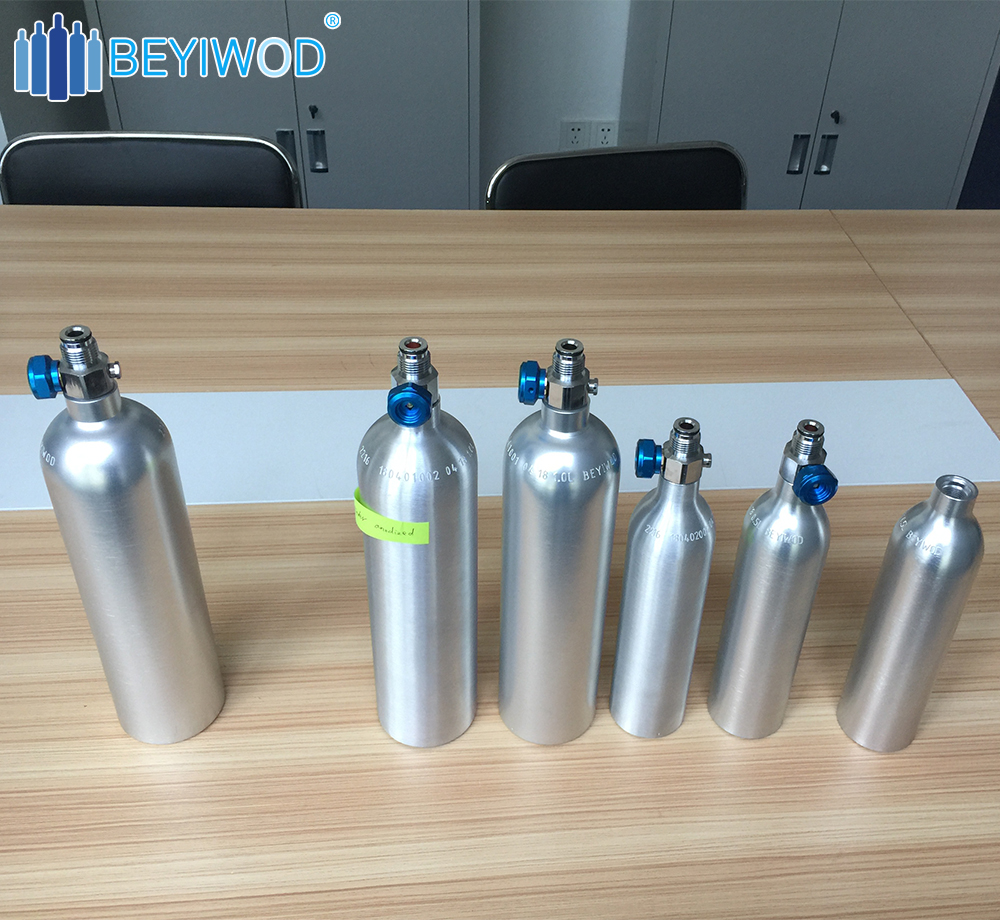

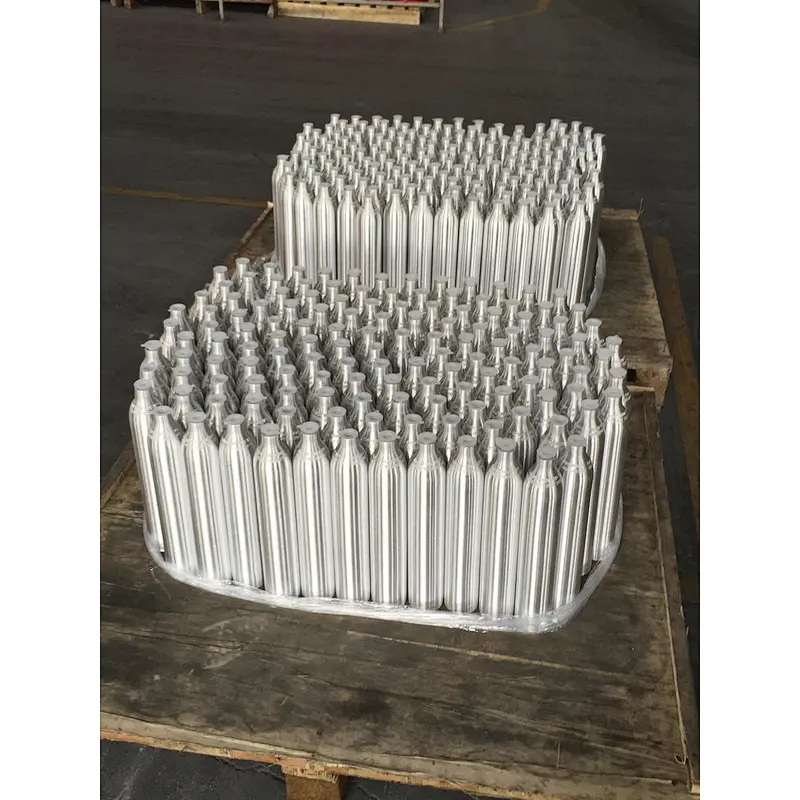

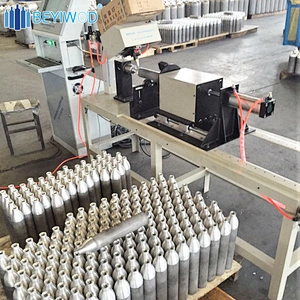

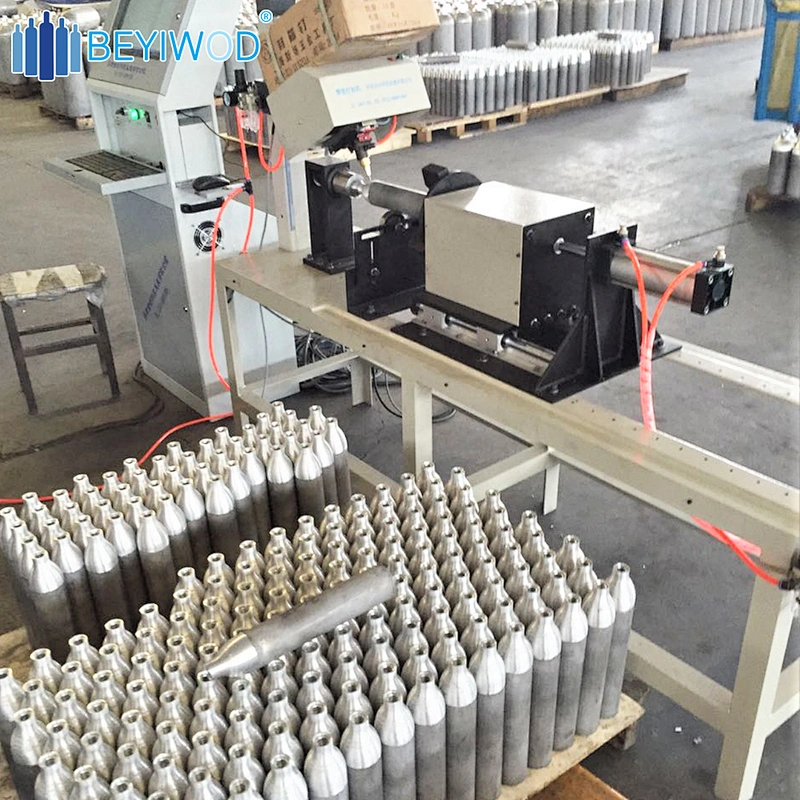

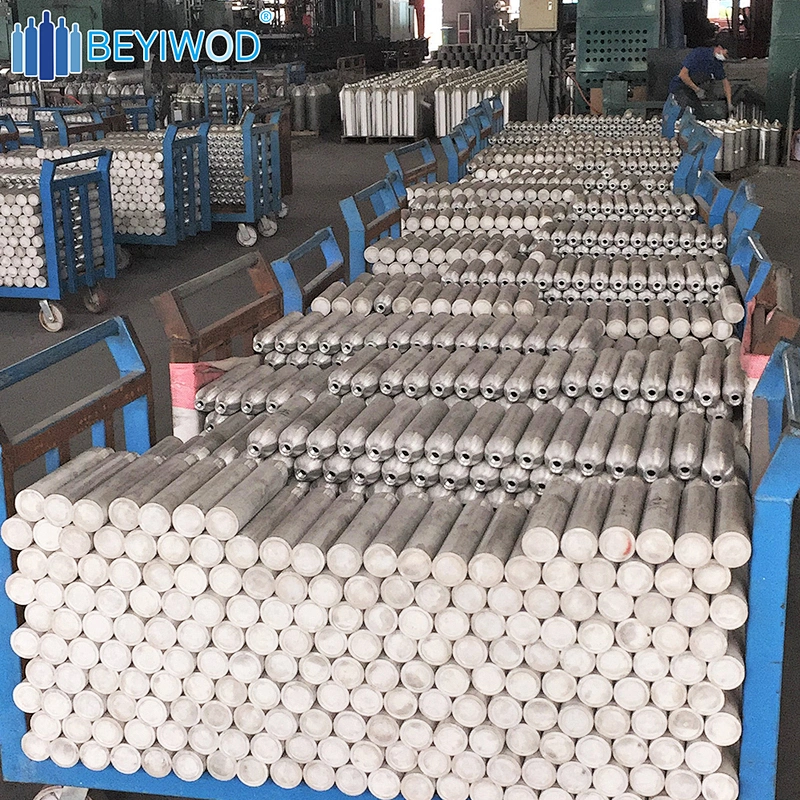

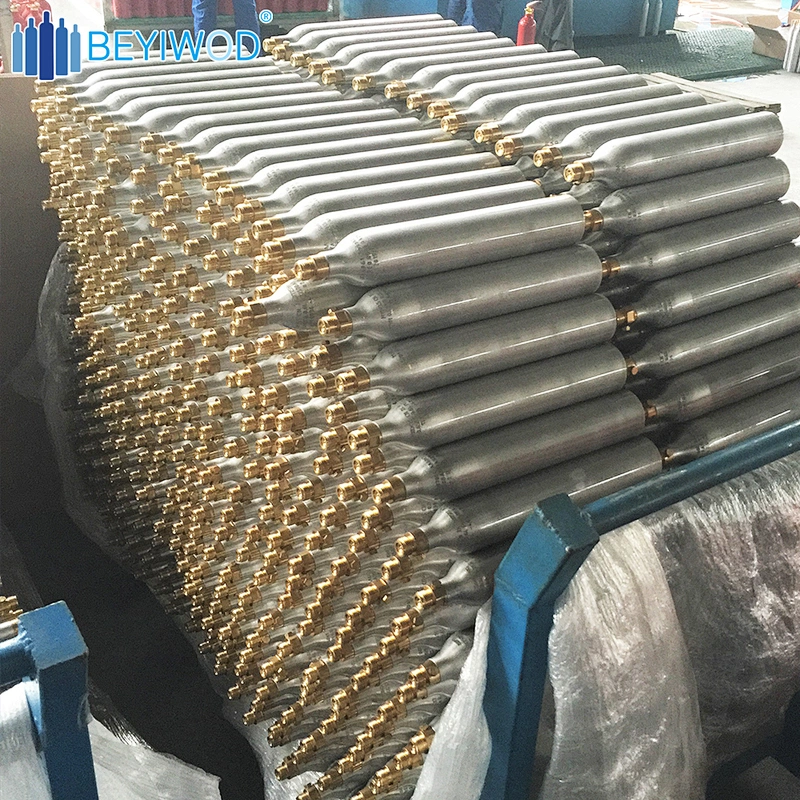

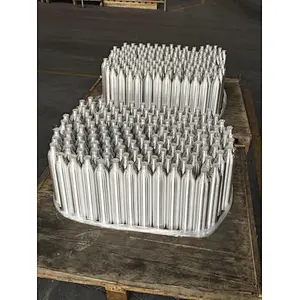

Some our customer's aluminum nitrous oxide gas cylinder picture show.

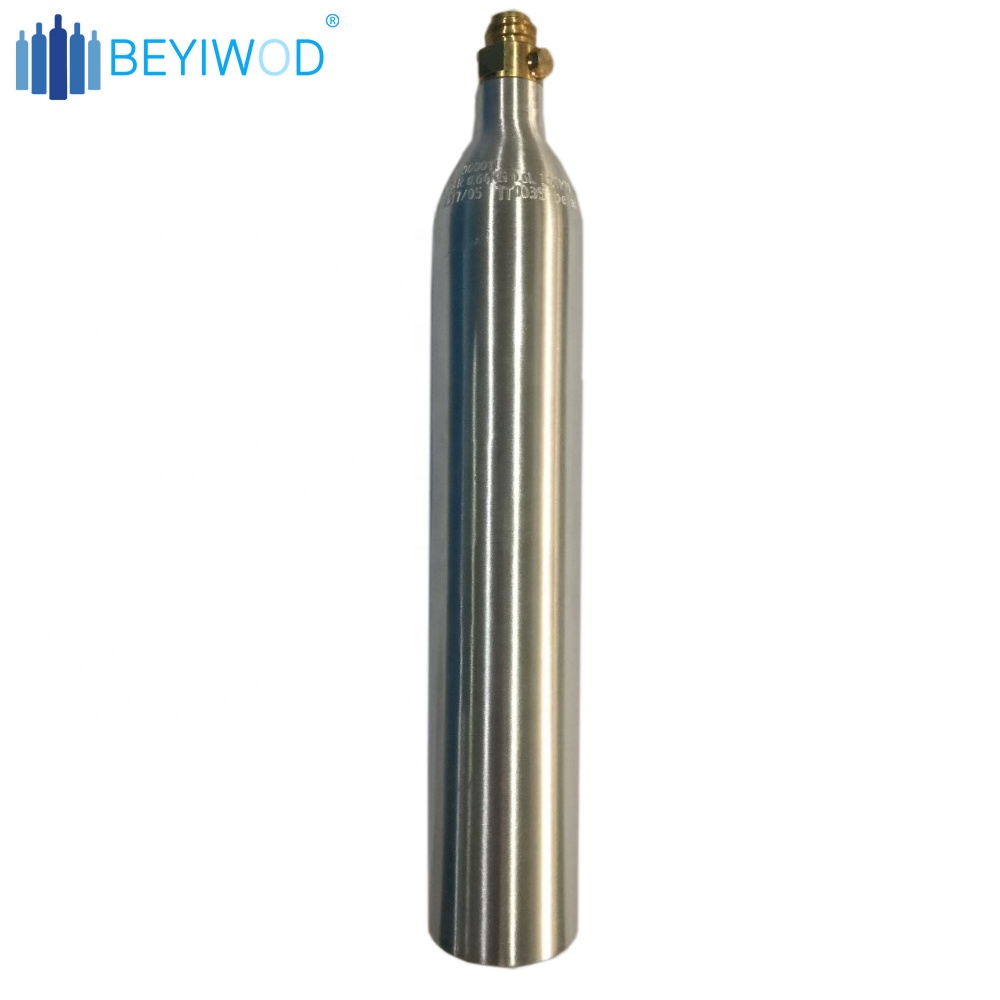

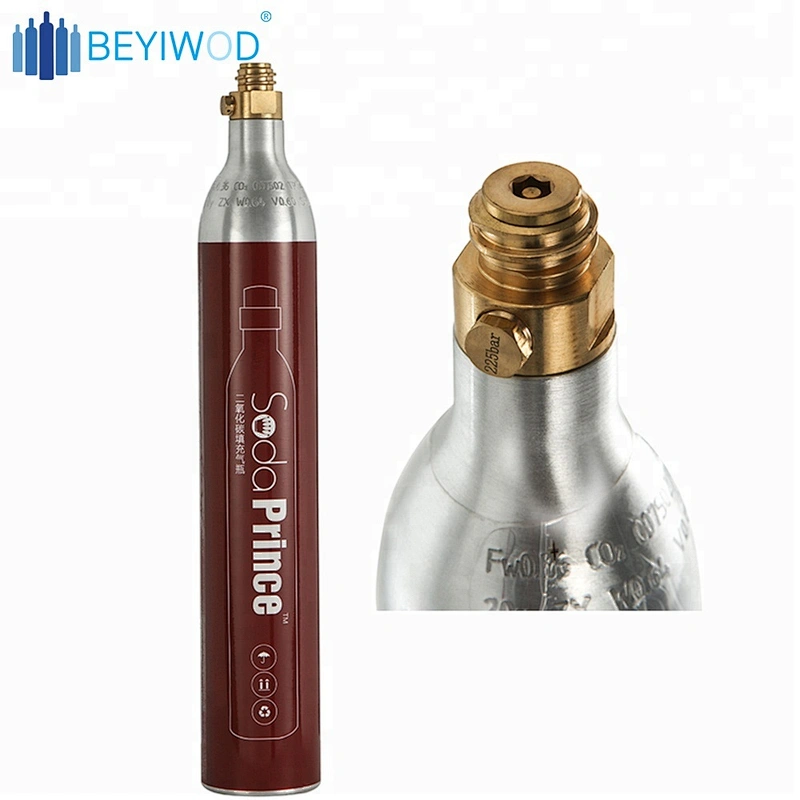

Clear picture about the aluminum 1L N2O nitrous oxide gas cylinder.

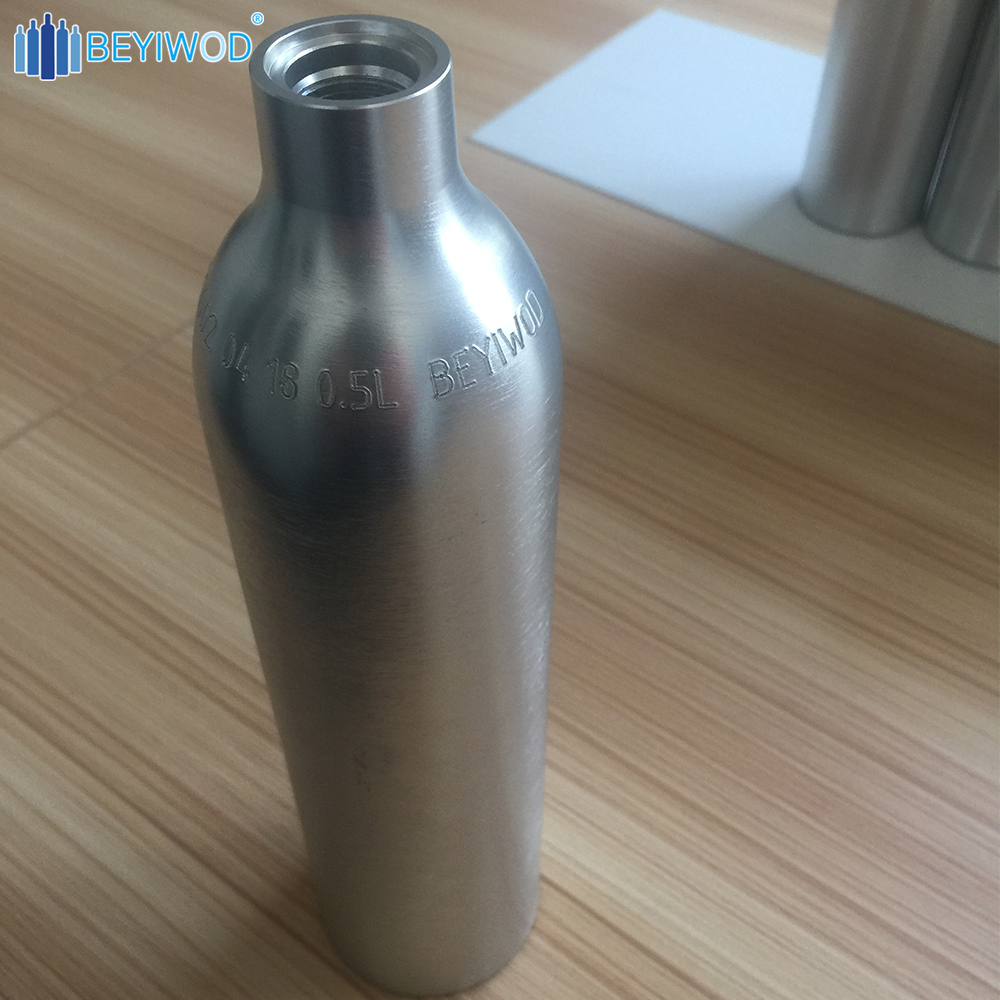

0.5L DOT3AL standard aluminum cylinder with M18*1.5 thread,nitrous oxide gas cylinder

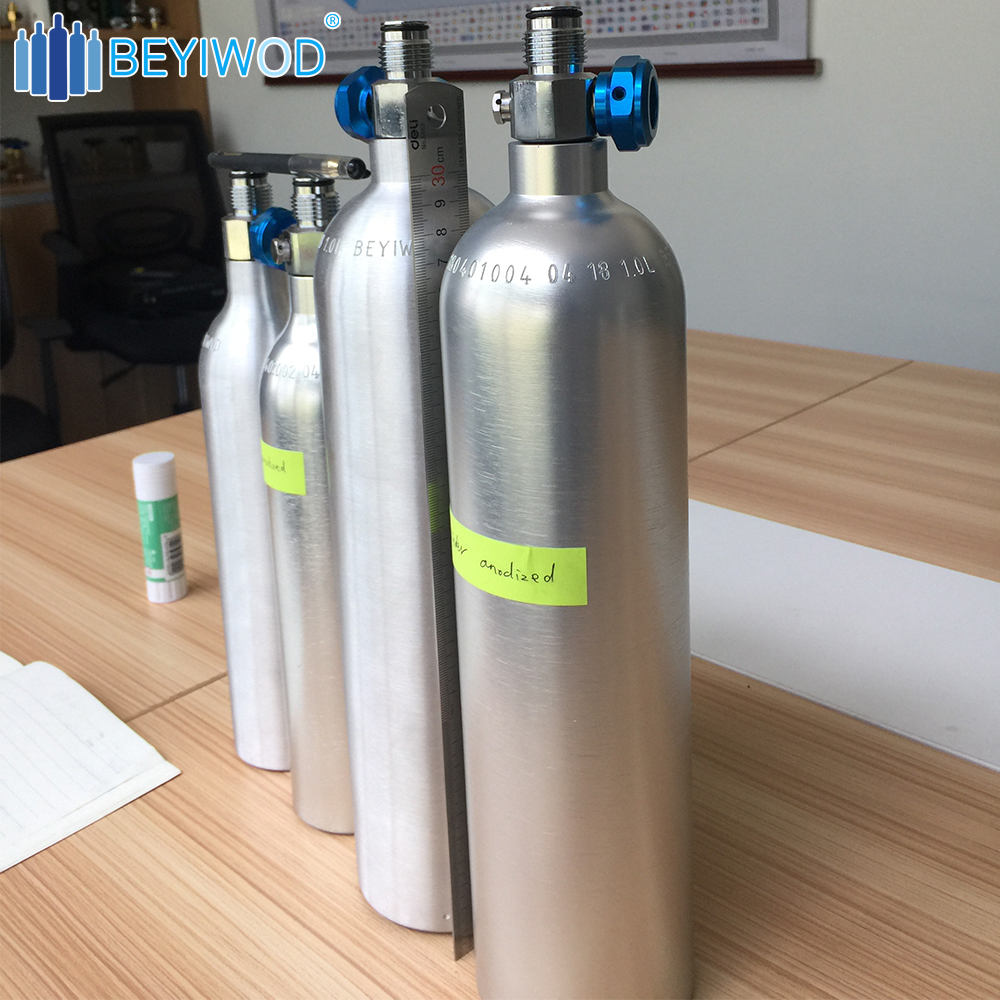

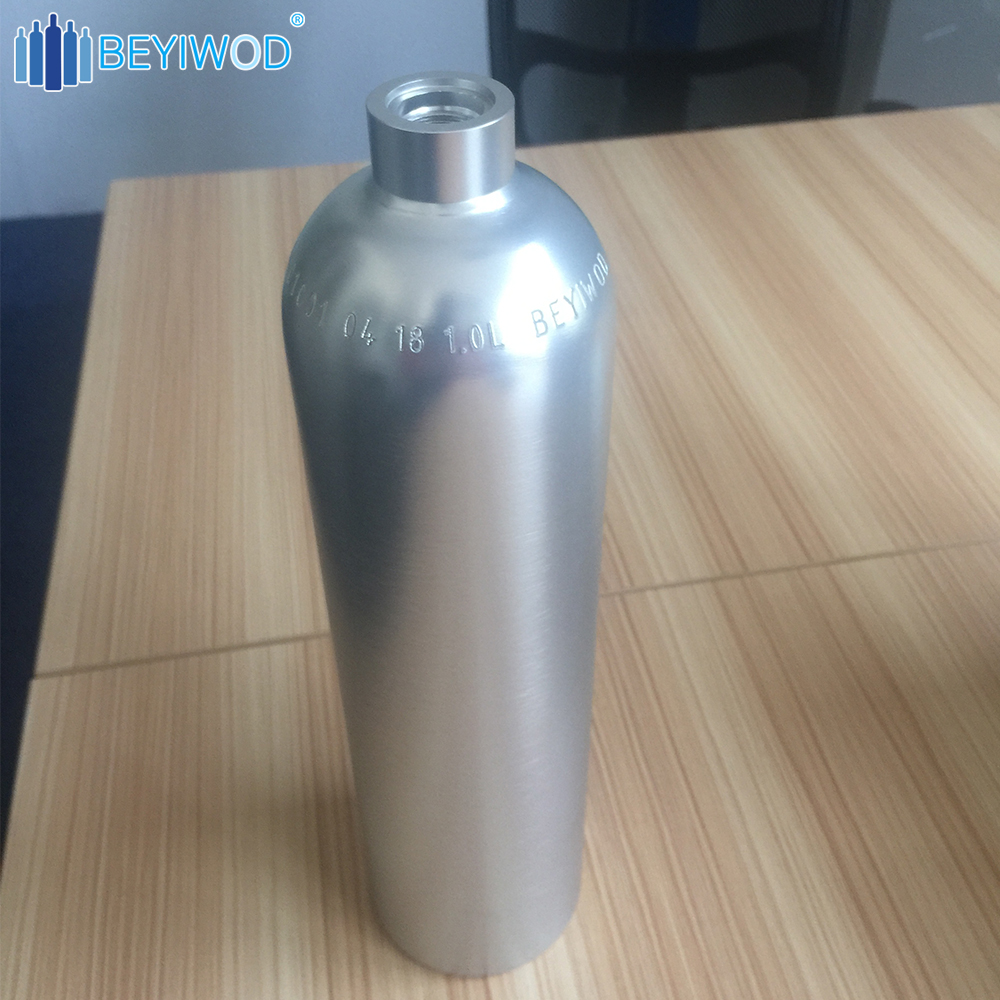

1L sliver color aluminum nitrous oxide gas cylidner with anodized,

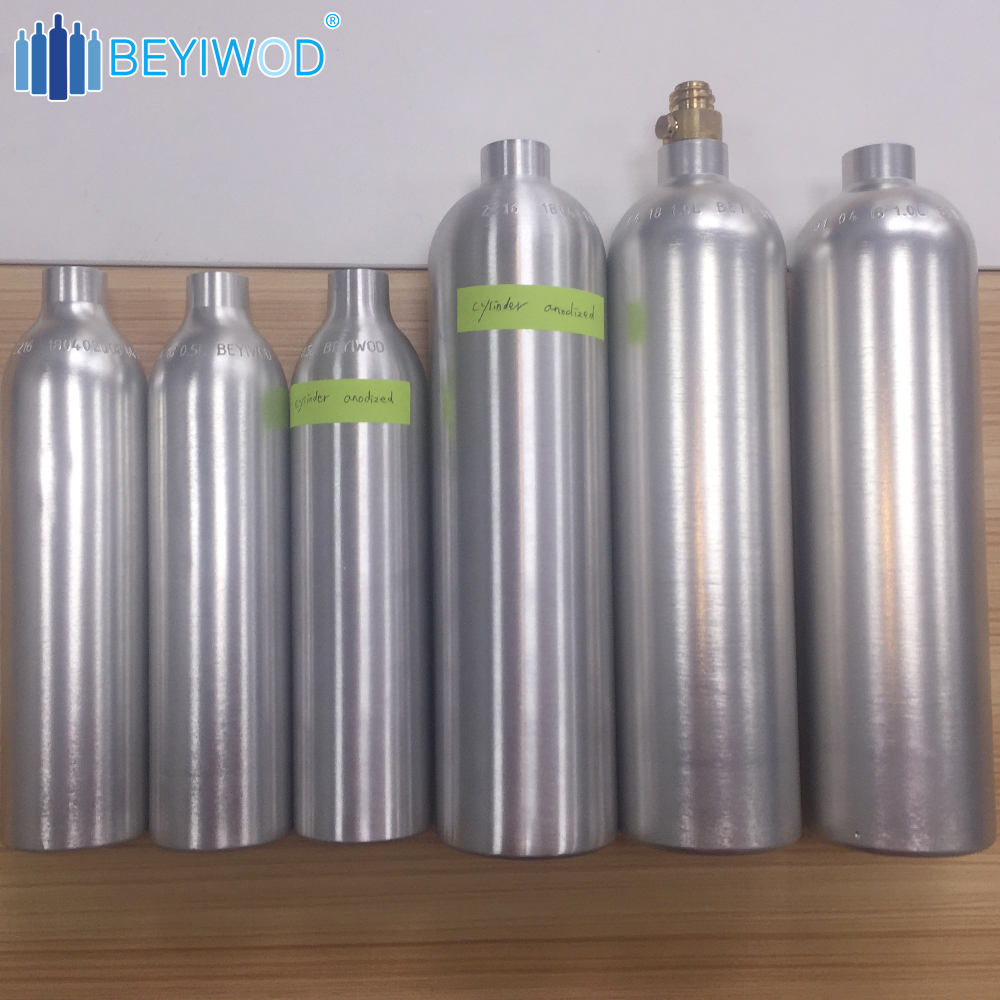

0.5L&1L aluminum nitrous oxide gas cylinder with/without anodized compare.

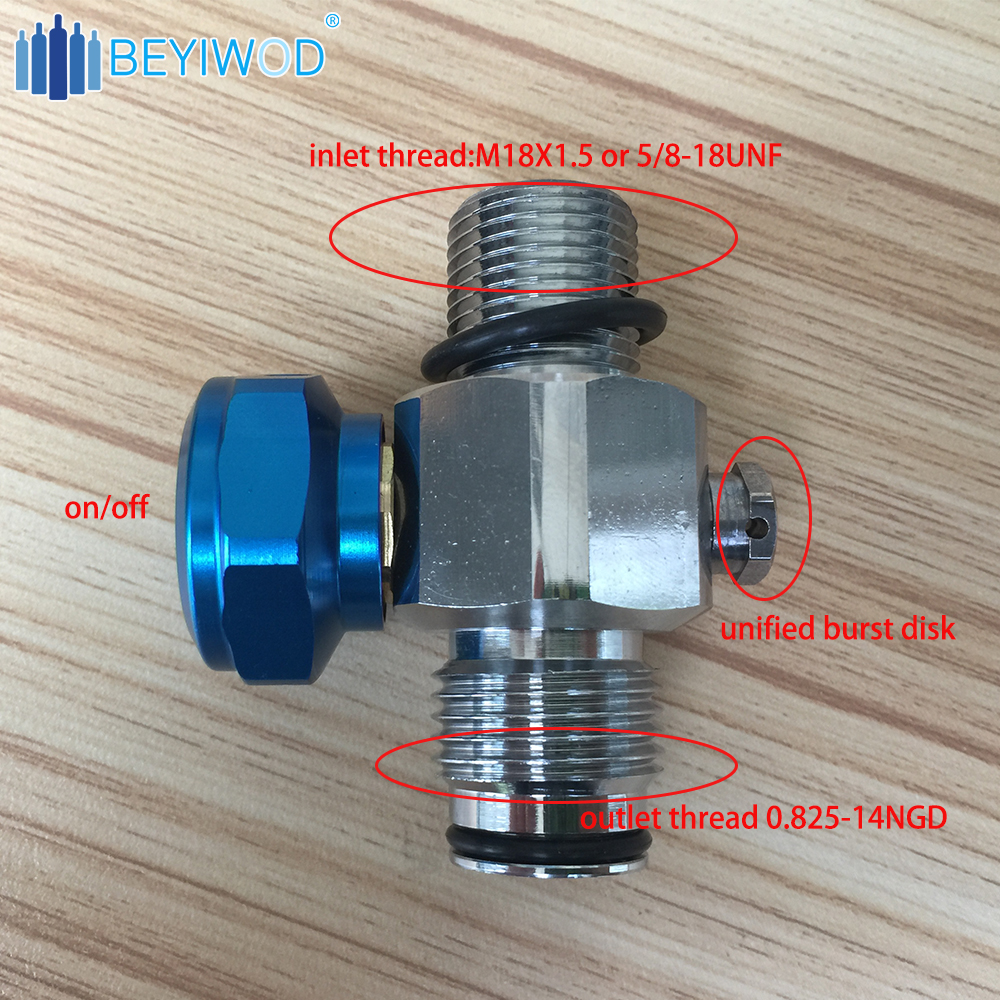

Best N2O nitrous oxide gas valve.
